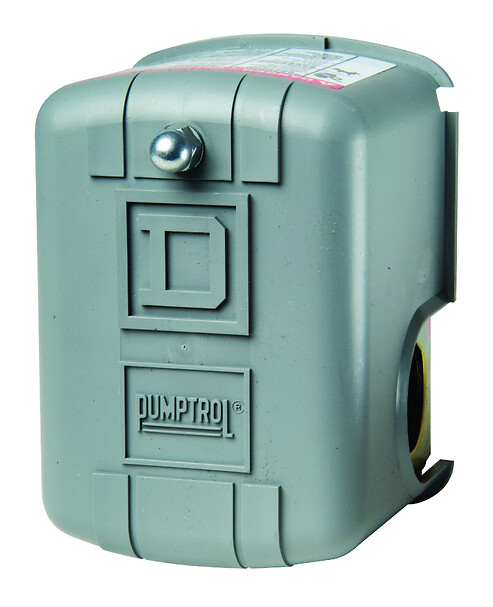

FSG2J20
Pressure switch FSG 4.6 bar - adjustable scale 2 thresholds - 2NC
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
FSG
Controlled fluid
Fresh water (0-70 °C), sea water (0-70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Local display
Without
Terminal block type
4 terminals
Electrical circuit type
Power circuit
Operating rate
10 CYCLE_PER_MINUTE
Pressure actuator
Diaphragm
Setting
Internal
Operating position
Any position
Terminals description ISO n°1
(1-2)NC
(3-4)NC
(3-4)NC
Protective treatment
TC
IP degree of protection
IP20 conforming to IEC 60529
Standards
CE
IEC 60730
IEC 60730
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.1 CENTIMETER
Package 1 width
0.1 CENTIMETER
Package 1 length
0.1 CENTIMETER
Package 1 weight
1 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
