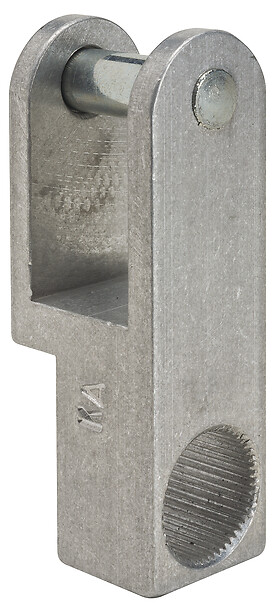

Limit switch lever, L140, cable pull 1.5 emergency stop
Commercialised
Expand all
Datasheet
Range of product
L140
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
L140
Movement of operating head
Rotary
Type of operator
Aluminium stay put lever for cable attachment length: 1.5-1.5 in for cable attachment, 1/4" pin, 3/4" inside diameter clearance
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By cable
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
10.2 CENTIMETER
Package 1 length
20.3 CENTIMETER
Package 1 weight
22.7 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
