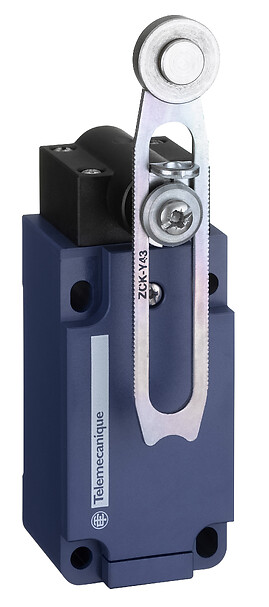

XCKS143H29

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCKS

-

Fixed

Rotary head

Plastic

Plastic

Plastic

By the body

Rotary

Spring return roller lever steel variable length

Lateral approach, 1 or 2 programmable direction

1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm

1 NC + 1 NO

Snap action

By 30° cam

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Zb

With

A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

(13-14)NO
(21-22)NC

40 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP67 conforming to IEC 60529, IP66 conforming to IEC 60529

IK05 conforming to IEC 62262

Class II conforming to IEC 61140, class II conforming to NF C 20-030

Class II conforming to IEC 61140, class II conforming to NF C 20-030

TC

CCC
CSA
UL

CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

S02

22

13 CENTIMETER

4.1 CENTIMETER

9.5 CENTIMETER

185 KILOGRAM

P06

352

70 CENTIMETER

60 CENTIMETER

80 CENTIMETER

68.64 KILOGRAM

1
