XULM06031

Photoelectric sensor XUL, reflex, Sn 6 m, 24...240 VAC/DC, cable 2 m

END OF COMMERCIALISATION

XULM06031 is replaced by the following product:


Quantity :  1


Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Sensor name
XUL
Electronic sensor type
Photo-electric sensor
Sensor design
Compact
Kit composition

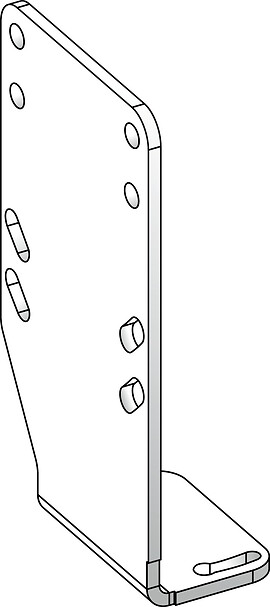

Bracket XULZ41
sensor
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
ABS
[Sn] nominal sensing distance
6-6 m reflex need reflector XUZC80
Maximum sensing distance
9 m with reflector Ø 80 mm
Wiring technique
5-wire
Detection system
Reflex
Delay response
25 ms
Sensing range
> 5...15 m
Electrical durability
500000 cycles, cos f = 1 , operating rate <60 cyc/mn at 250 V, 500000 cycles, cos f = 0.4 , operating rate <60 cyc/mn at 250 V
Electrical connection
Cable
Cable length
2 m
Cable composition
5 x 0.34 mm²
Supply voltage limits
20-264 V AC/DC
[Us] rated supply voltage
24...240 V AC/DC
Supply circuit type
AC/DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 40 mA no-load
Emission
Infrared reflex
Cable outer diameter
6 mm
Setting-up
Without sensitivity adjustment
Output type
Relay
Type of output signal
Discrete
Output voltage
<= 250 V
Add on output
Without
Discrete output function
1 NC
Status LED
1 LED for output state
Delay first up
60 ms
Delay recovery
25 ms
Height
70 mm
Width
18 mm
Depth
45 mm
Product weight
0.195 kg
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Warranty
18 months
Unit type of package 1
PCE
Number of units in package 1
1
