XURU1KSMM12

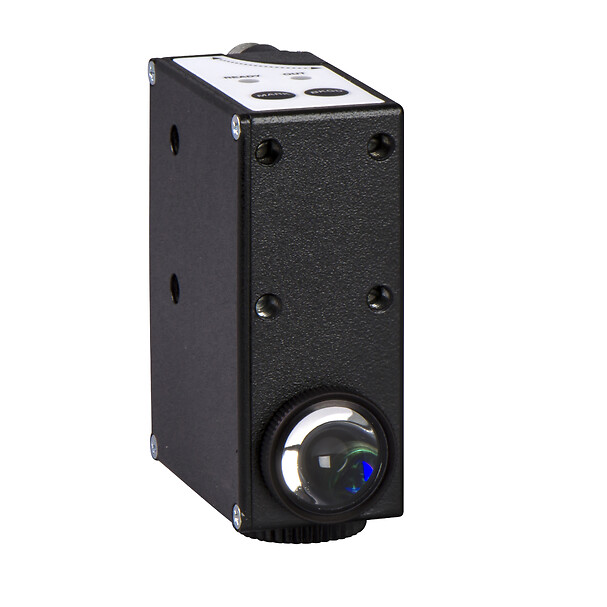

Photoelectric sensors XU, XUR, diffuse, luminescence, Sn 9 mm, 12...24 VDC, M12

End of commercialisation End of commercialization date : January 12th 2023 End of service date : January 12th 2023

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUR
Series name
Application packaging
Product specific application
Luminescence
Enclosure material
Zinc alloy
Electronic sensor type
Photo-electric sensor
Sensor design
Compact
Electrical connection
1 male connector M12 adjustable 3 positions, 4 pins
Material
Metal
Wiring technique
3-wire
Detection system
Diffuse
Emission
-
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Analogue
discrete
Supply circuit type
DC
Discrete output type
PNP or NPN
Analogue output range
-
Delay response
0.25 MILLISECOND
Setting-up
Sensitivity adjustment with teach mode
Current consumption
<= 20 mA no-load
Status LED
-
Output type
Solid state
Switching capacity in mA
<= 200 mA (reverse polarity, overload and short-circuit protection)
Lens material
Glass
Add on output
With analogue output
Time delay range
20 ms off-delay activation/deactivation by internal switch delay
Maximum voltage drop
<1 V (closed state), NPN, <2 V (closed state), PNP
Delay first up
100 MILLISECOND
Delay recovery
0.25 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 0.6 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 CENTIMETER
Package 1 width
9.8 CENTIMETER
Package 1 length
16 CENTIMETER
Package 1 weight
352 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
