XX630A1KAM12
Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, Sn 1 m, 2 NO, M12 connector
END OF COMMERCIALISATION

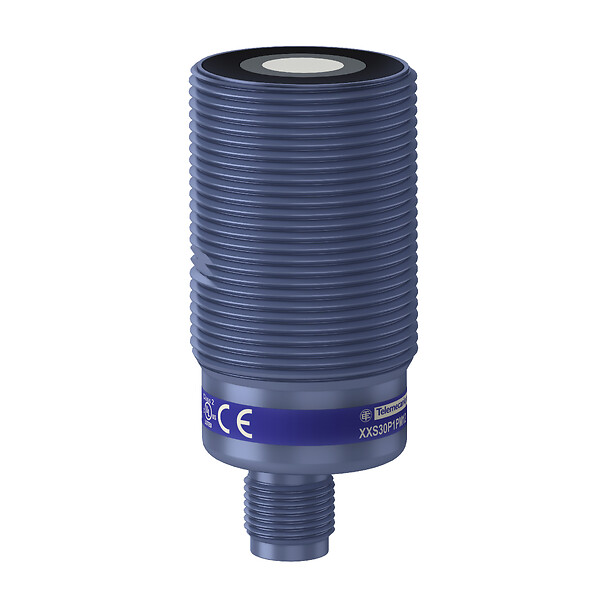

XX630A1KAM12 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX6
Sensor design
Cylindrical M30
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Discrete output function
2 NO
Wiring technique
4-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP and NPN
Electrical connection
Male connector M12 4 pins
Enclosure material
ULTEM
Front material
Silicone
Thread type
M30 x 1.5
Function available
Without synchronisation mode
Voltage drop
1 VOLT
Minimum size of detected object
Cylinder diameter 1.6 mm at 0.635 m
Delay first up
720 MILLISECOND
Current consumption
<= 50 mA
Status LED
Setting-up assistance: 1 LED (green/red (flashing))
Switching frequency
<= 10 Hz
Delay response
20 MILLISECOND
Delay recovery
20 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
CCSAus
UL
UL
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.4 CENTIMETER
Package 1 width
9.8 CENTIMETER
Package 1 length
13.5 CENTIMETER
Package 1 weight
123 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
