XXS18S1AM12
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XXS

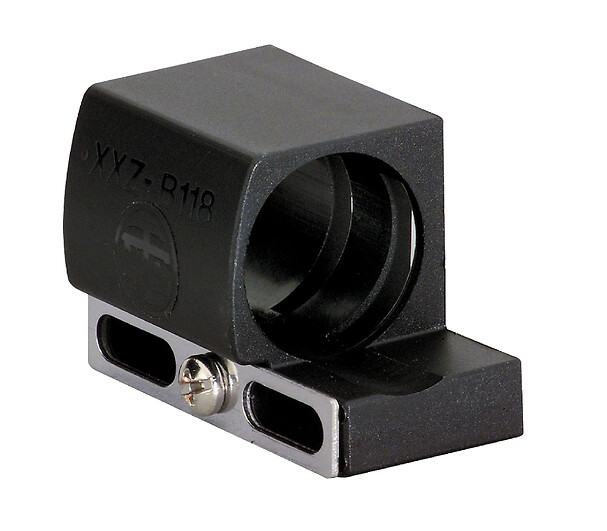

Sensor design
Cylindrical M18
Detection system
Diffuse
Material
Metal
Type of output signal
Analogue
Wiring technique
5-wire
Analogue output function
4...20 mA
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Electrical connection
Male connector M12 5 pins
Enclosure material
Stainless steel 316L
Front material
Epoxy
resin
rubber
resin
rubber
Function available
Software configurable
with synchronisation mode
with synchronisation mode
Minimum size of detected object
Cylinder diameter 1 mm at 600 mm
Delay first up
180 MILLISECOND
Current consumption
30 mA
Status LED
Output state: 1 LED (yellow), echo state: 1 LED (green)
Maximum switching capacity
250 Ohm with 12 V DC overload and short-circuit protection, 850 Ohm with 24 V DC

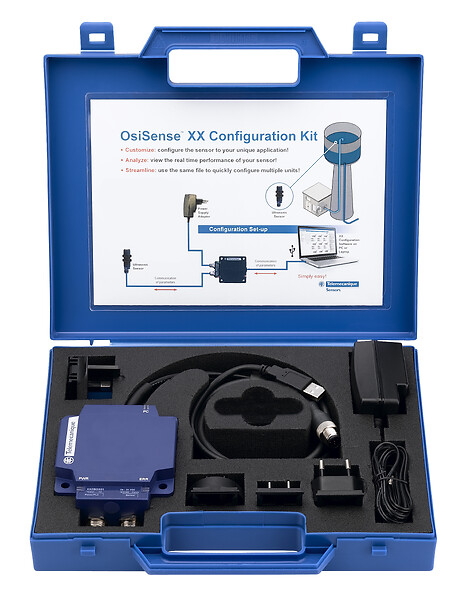

Setting-up

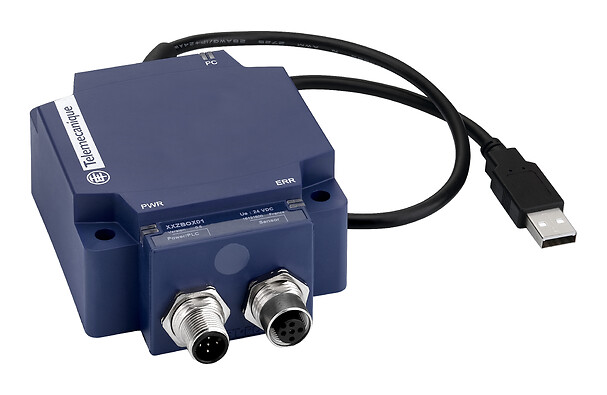

Configurator software
teach mode
teach mode
Delay recovery
100 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529, IP67
Marking
CE
Standards
CSA C22.2 No 14
IEC 60947-5-2
UL 508
IEC 60947-5-2
UL 508
Product certifications
cULus
E2
Ecolab
RCM
E2
Ecolab
RCM
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
6.4 CENTIMETER
Package 1 length
9.4 CENTIMETER
Package 1 weight
0.05 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
4.1 CENTIMETER
Package 3 width
6.4 CENTIMETER
Package 3 length
9.4 CENTIMETER
Unit type of package 2
S01
Package 3 weight
0.05 KILOGRAM
Number of units in package 2
5
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.475 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
