XY2CB11

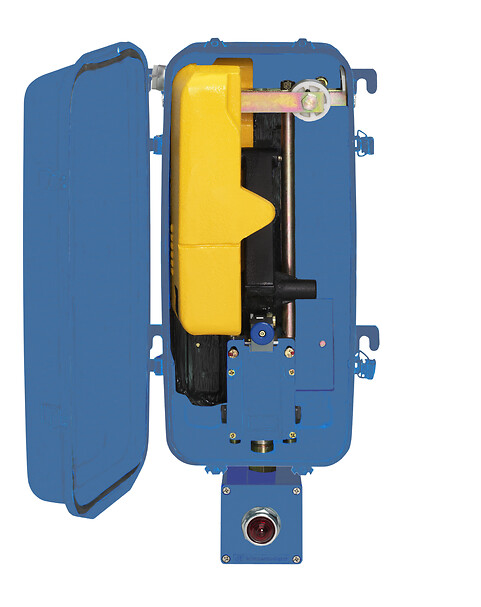

Rope pull switch XY2CB - LH side - 1NC+1NO -pilot light 24V
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Simple stop rope pull switch
Device short name
XY2CB
Housing colour
Blue
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Local signalling
With pilot light, 24 V
Reset
From inside enclosure
[Us] rated supply voltage
24 V
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break
Trigger cable anchor point
LH side
Connections - terminals
Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Light block supply
Direct
Marking
CE
Positive opening
With conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Compatibility code
XY2CB
Standards
IEC 60947-5-1
Protective treatment
TC
IP degree of protection
IP22 (enclosure) conforming to IEC 60529, IP65 (contact housing) conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
45.8 CENTIMETER
Package 1 width
20.8 CENTIMETER
Package 1 length
15.5 CENTIMETER
Package 1 weight
18.851 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 2 access points for operating cable.
- (2) + 125 for opening cover.
- (3) 1 tapped entry for n° 13 (Pg 13.5) cable gland.
