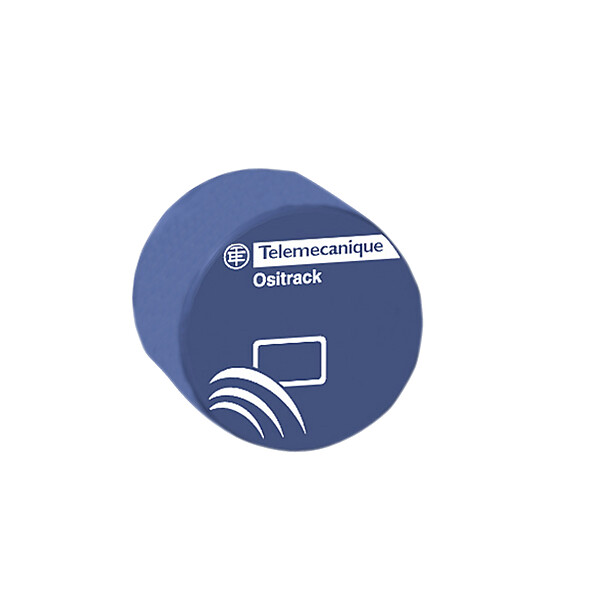

XGHB123345
Electronic tag, Radio frequency identification XG, RFID 13.56 MHz, cylindrical Ø 12, 304 Bytes
COMMERCIALISED
Expandir tudo
Folha de dados
Range of product
Telemecanique Radio frequency identification XG
Product or component type
Electronic tag
RFID electronic tag name
XGHB
Design
Cylindrical M12
Memory capacity
304 B
Outer dimension
Ø12 x 8 mm
Quantity per set
Set of 5
Read time
12 + 0.825 x (number of 16-bit words) ms
write time
19 + 4.1 x (number of 16-bit words) ms
IP degree of protection
IP68
Fixing mode
By screws
Memory type
EEPROM
Memory operation
Read/write
Number of read cycles
Unlimited
Number of write cycles
100000 at -25-70 °C, 2500000 at 30-30 °C
Material
PBT (polybutylene terephthalate)
Standards
ISO 15693
Vibration resistance
2 mm conforming to IEC 60068-2-6 (f = 5-29.5 Hz), 7 gn conforming to IEC 60068-2-6 (f = 29.5-150 Hz)
Shock resistance
30 gn conforming to IEC 60068-2-27 for 11 ms
IK degree of protection
IK02 conforming to IEC 62262
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
4 CENTIMETER
Package 1 length
4.5 CENTIMETER
Package 1 weight
0.0009 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
100
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.341 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
5
Package 3 height
1.5 CENTIMETER
Package 3 width
4 CENTIMETER
Package 3 length
4.5 CENTIMETER
Package 3 weight
0.007 KILOGRAM
Indivisible sale quantity
5
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir tudo
Desenhos técnicos
Dimensions
Updatable Code Electronic Tags
Minimum Mounting Distances
Distance Between Tags
Minimum Mounting Distances in a Metal Structure
