XGSZ33ETH
Connection Ethernet box, Radio frequency identification XG, Modbus TCP/IP, 3 channels for XGCS smart antennas
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Radio frequency identification XG
Product or component type
Connection Ethernet box
Device short name
XGSZ33
Communication port protocol
Modbus TCP/IP
Electrical connection
1 male connector M12 4 pins for power supply (A coding), 3 female connectors M12 5 pins for stations XGCS (A coding), 1 connector M12 4 pins for Ethernet network (D coding)
[Us] rated supply voltage
24 V DC conforming to Protective Extra Low Voltage
Bus conformity class
A10
Power consumption in W
1 WATT
Status LED
Ethernet network activity: 1 LED (green), supply on: 1 LED (green), collision detection: 1 LED (red), fault: 1 LED (red), diagnostics: 1 LED (yellow)
Communication service
Modbus messaging
Register words
1...123 words
Transmission support medium
Ethernet cable
Port Ethernet
100BASE-TX
10BASE-T
10BASE-T
Transmission rate
10...100 Mbit/s
Marking
CE
Product certifications
UL
IP degree of protection
IP65
EMC filter
Class B EMC filter conforming to EN 55022, Level 3 EMC filter conforming to IEC 61000
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
8
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
7.612 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir tudo
Desenhos técnicos
Dimensions
Connection Boxes
Wiring Diagram

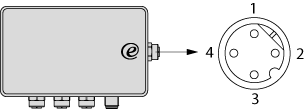

Ethernet Connections
Ethernet Connections
Ethernet Connections
Ethernet Connections
