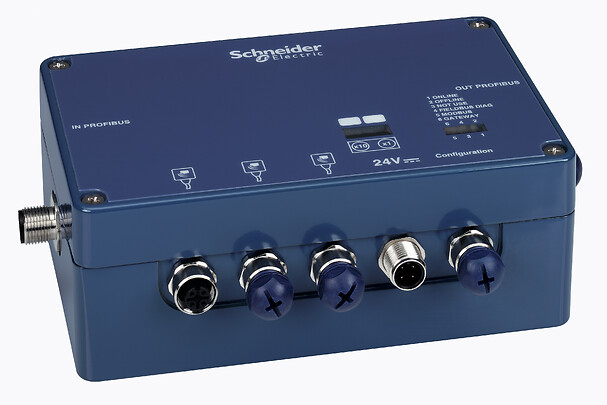

XGSZ33PDP
Connection Profibus box, Radio frequency identification XG, DP, 3 channels for XGCS smart antennas
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Radio frequency identification XG
Product or component type
Connection Profibus box
Device short name
XGSZ33
Communication port protocol
Profibus DP V1
Electrical connection
1 female connector M12 4 pins for PC connection (A encoding), 1 female connector M12 5 pins for network output (B encoding), 1 male connector M12 4 pins for power supply (A encoding), 1 male connector M12 5 pins for network input (B encoding), 3 female connectors M12 5 pins for stations XGCS (A encoding)
[Us] rated supply voltage
24 V DC conforming to Protective Extra Low Voltage
Power consumption in W
2.5 WATT
Status LED
Diagnostics: 1 dual color LED (red/green), RFID communication: 1 dual color LED (red/green), communication network: 1 LED (green), diagnostics: 1 LED (red)
Communication service
Cyclical variable exchange
Register words
1...49 words
Transmission support medium
2 twisted shielded pairs cable
Transmission rate
9.6 kbit/s...12000 kbit/s
Marking
CE
Product certifications
Profibus
IP degree of protection
IP65
EMC filter
Class B EMC filter conforming to EN 55022, Level 3 EMC filter conforming to IEC 61000
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
3
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.315 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
