XMLA001R2C11

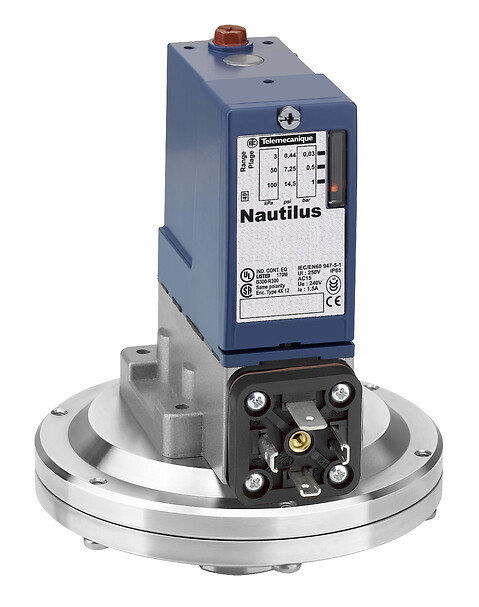

Pressure switch XMLA 1 bar - fixed scale 1 threshold - 1 C/O
End of commercialisation Data do fim da comercialização : Data do fim do serviço :
Expandir tudo
Folha de dados
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Controlled fluid
Air (0-160 °C), hydraulic oil (0-160 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
1 male connector EN 175301-803-A (ex DIN43650), 4 pins
Contacts type and composition
1 C/O
Product specific application
Not applicable
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Pressure actuator
Diaphragm
Materials in contact with fluid
304L stainless steel
FPM, FKM
steel
FPM, FKM
steel
Enclosure material
Zinc alloy
Operating rate
120 cyc/mn
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting
External
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
BV
CCC
CSA
LROS (Lloyds register of shipping)
UL
CCC
CSA
LROS (Lloyds register of shipping)
UL
Protective treatment
TC standard version
Operating position
Any position
Vibration resistance
2 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
30 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir tudo
Desenhos técnicos

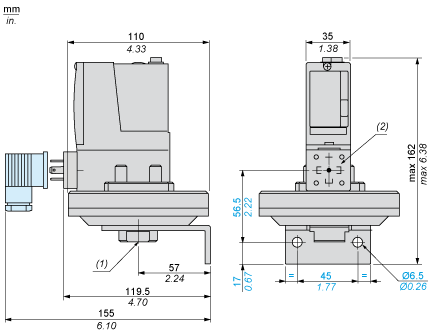

Dimensions
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) EN 175301-803-A connector
Wiring Diagram
Terminal Model
Wiring Diagram
Vacuum Switch Connector Pin View
- (1) 11 and 13
- (2) 12
- (3) 14

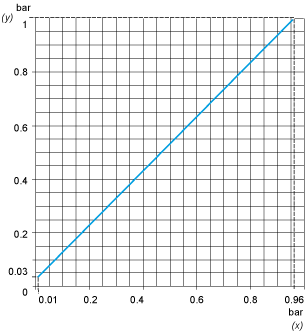

Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- (y) Rising pressure
- (x) Falling pressure
- (y) Pressure
- (x) Time
- (1) Adjustable value
- (2) Non adjustable value
- PH : High point
- PB : Below point
Expandir tudo
Documentos e downloads
Nome do documento
Data
Tamanho
2024-02-07
25161574
Nome do documento
Data
Tamanho
2025-01-13
8843040
Nome do documento
Data
Tamanho
7/18/2024
17469
7/18/2024
19807
7/18/2024
19961
7/18/2024
20504
7/18/2024
21752
7/18/2024
21943
7/18/2024
21944
7/18/2024
220238
7/18/2024
24926
7/18/2024
27492
7/18/2024
27754
7/18/2024
28599
7/18/2024
31579
7/18/2024
34259
7/18/2024
37784
Expandir tudo
Produtos e acessórios relacionados
XMLZA120

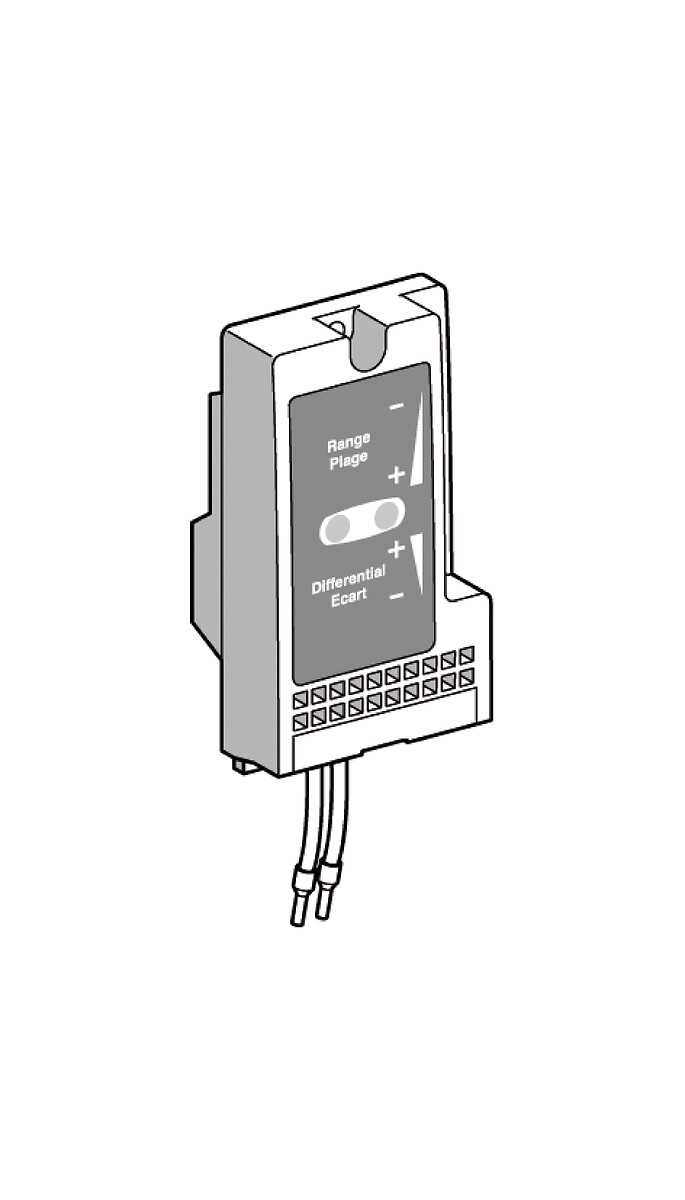

Pressure sensors XM, indicator module 2 LEDs with cover, 110/240 V AC, for pressure switch XML A
XMLZL001

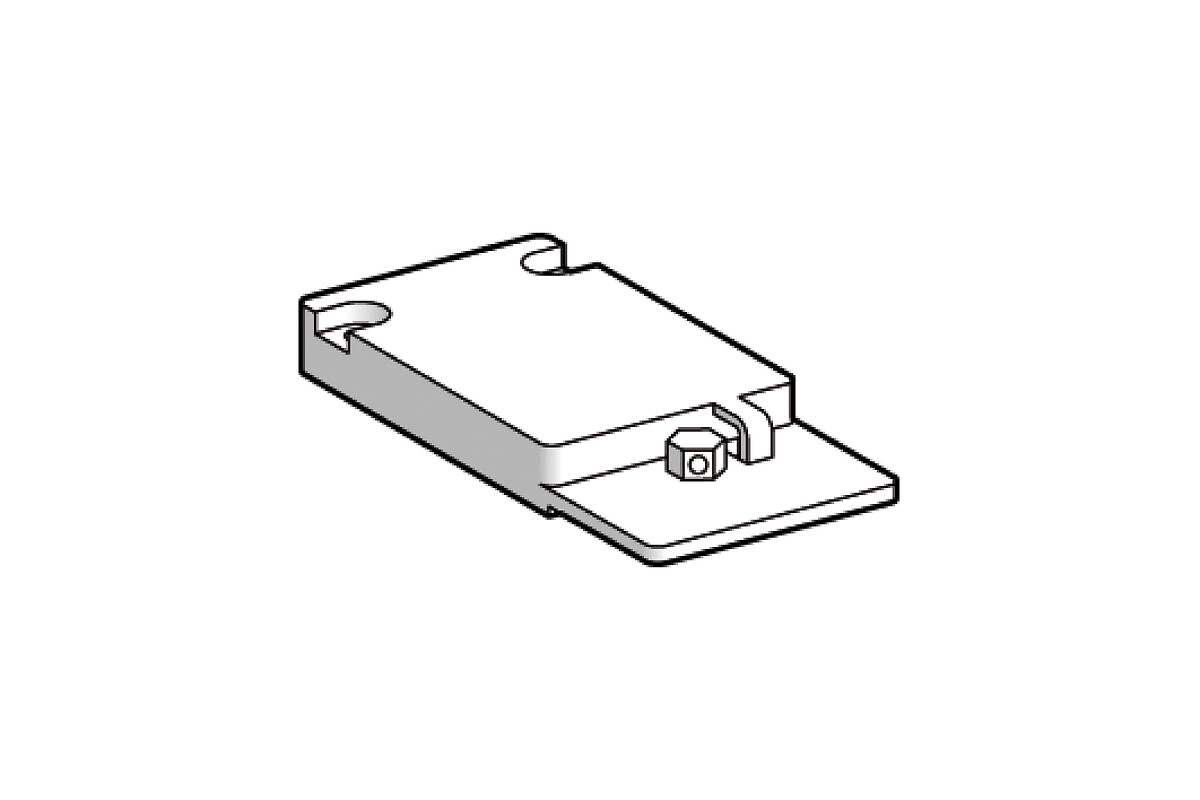

Pressure sensors XM, lead sealable protective cover, for pressure switch
XMLZL003

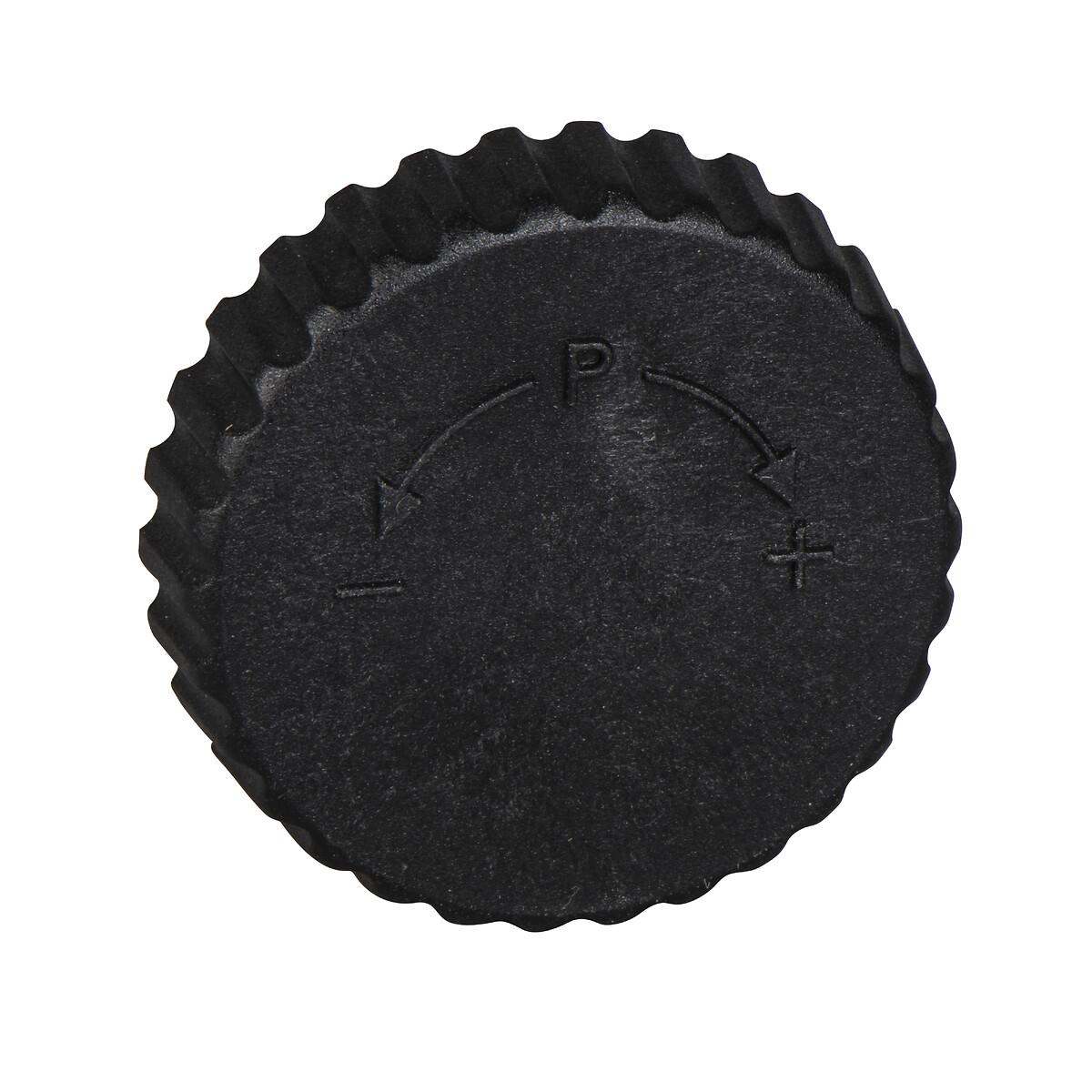

Pressure sensors XM, knurled adjustment knob Ø 36 mm, for pressure switch XML
XMLZL005

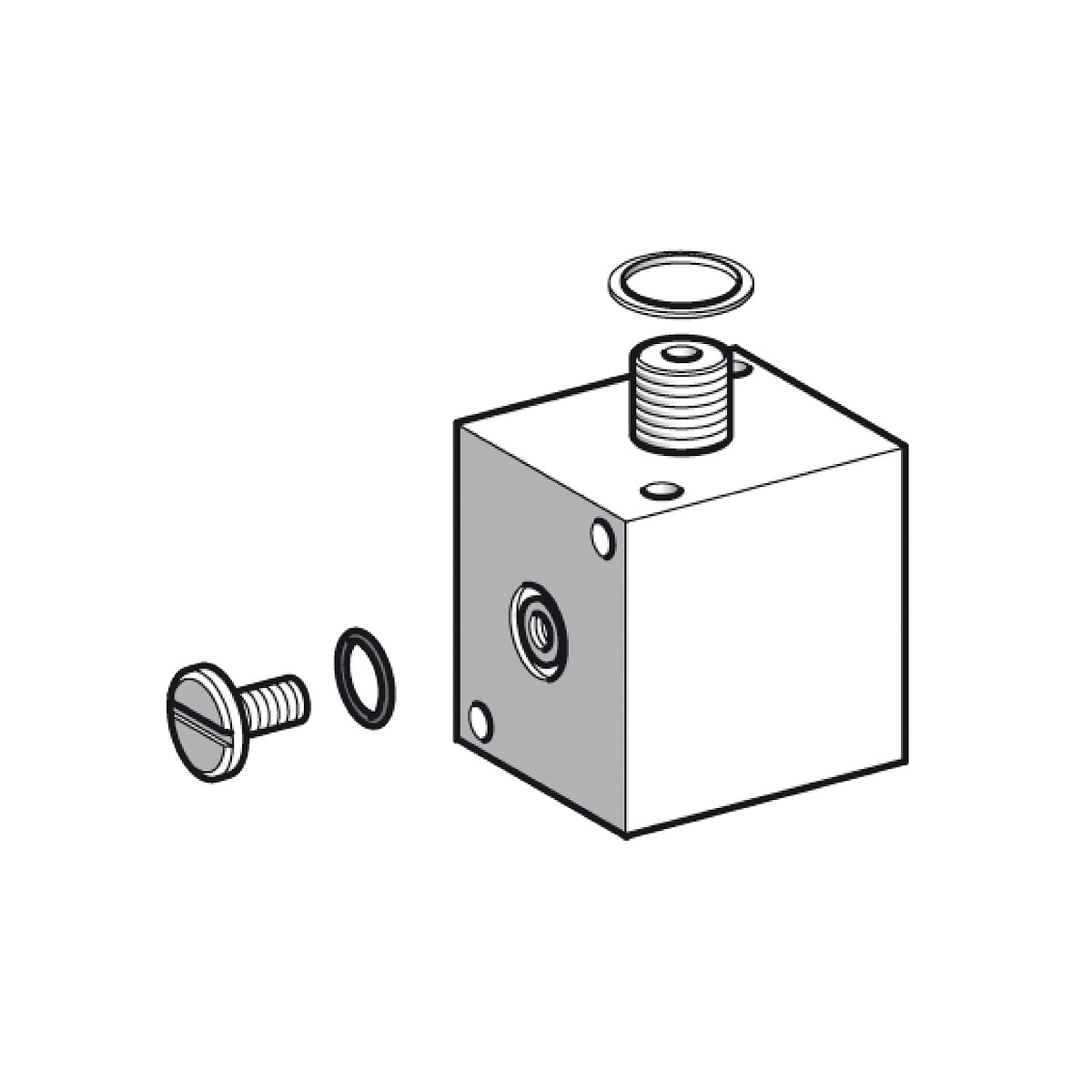

Pressure sensors XM, hydraulic block for base mounting onto fluid manifold, for pressure switch XML
XMLZL011
Pressure sensors XM, lead sealable protective cover, for pressure switch XML
XMLZL012
Pressure sensors XM, adaptor G1/4 / G3/8 male/female, for pressure switch XML
XMLZZ120
indicator module 2 LEDs with cover - 110/240 V AC - for pressure switch XML
XZCC43FCP40B

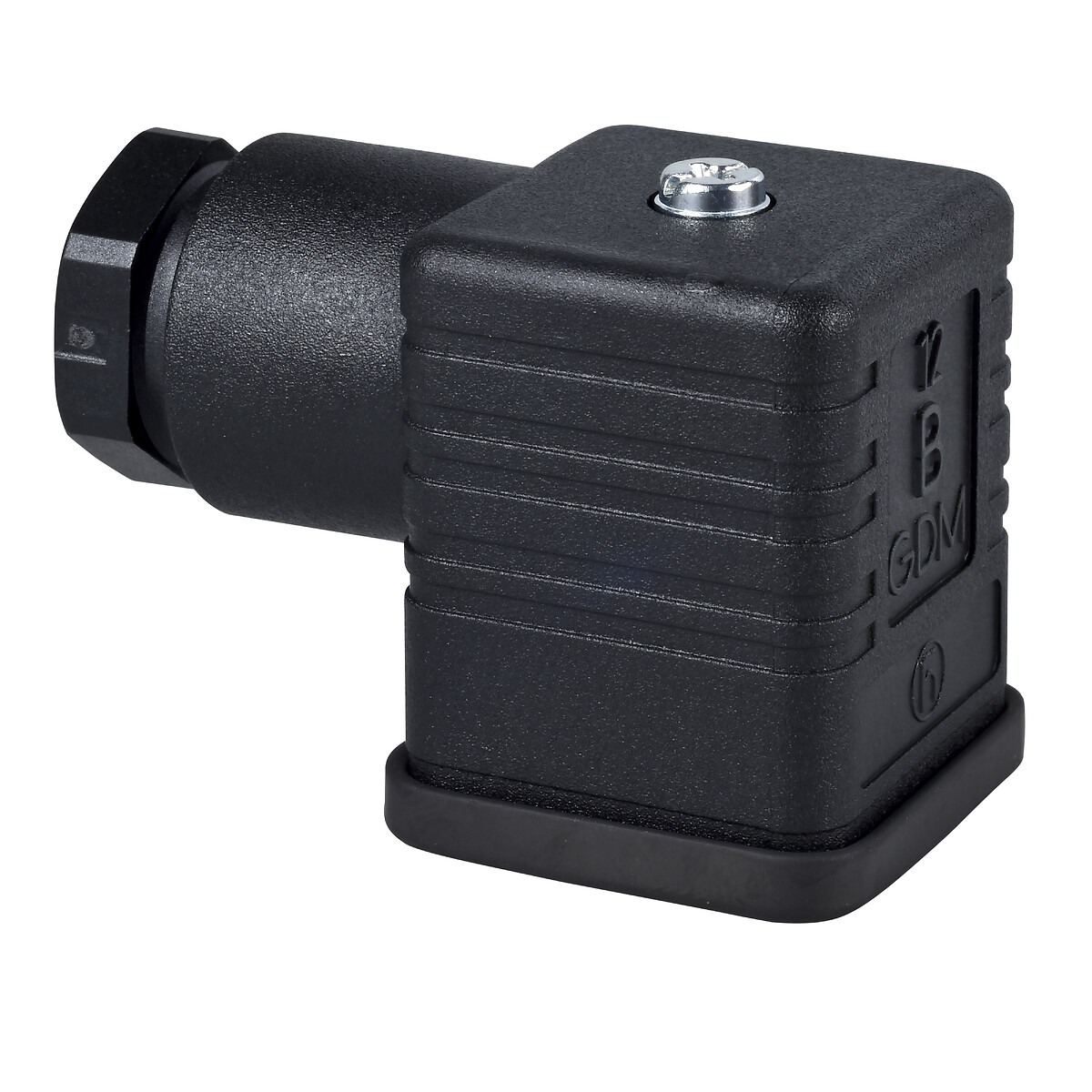

Female, DIN 43650 A, 4 pin, elbowed connector, cable gland Pg 11
