XMLA500D2S14

Pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O

arrow

Commercialised

Baixar folha de dados em pdf Download do arquivo 3d cad Encontre um distribuidor

Expandir tudo

Folha de dados

Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Controlled fluid
Hydraulic oil (0-160 °C)
Fluid connection type
PT 1/4 (female)
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
AWG gauge
AWG 20...AWG 14
Cable entry
Cable gland 7-13 mm
Contacts type and composition
1 C/O
Product specific application
Not applicable
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Pressure actuator
Piston
Materials in contact with fluid
Brass
FPM, FKM
PTFE
stainless steel
steel
Enclosure material
Zinc alloy
Terminal block type
4 terminals
Operating rate
60 cyc/mn
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting
External
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
BV
CCC
CSA
LROS (Lloyds register of shipping)
UL
Protective treatment
TC standard version
Operating position
Any position
Vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection
IP66 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
12.2 CENTIMETER
Package 1 length
8.5 CENTIMETER
Package 1 weight
757 GRAM
Unit type of package 2
S02
Number of units in package 2
13
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.147 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expandir tudo

Desenhos técnicos

Dimensions

epds

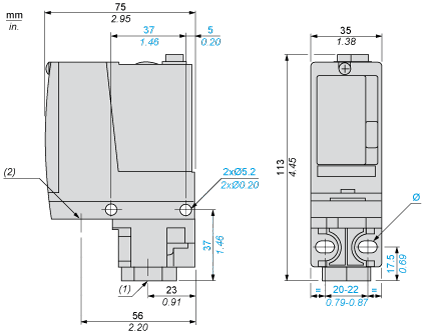

  • (1) 1 fluid entry, tapped PT 1/4 (JIS B0203)
  • (2) 1 electrical connections entry, tapped 1/2" PF (JIS B0202)
  • Ø : 2 elongated holes Ø 5.2 x 6.7

Wiring Diagram

Terminal Model

epds

Operating Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
epds
  • (y) Rising pressure
  • (x) Falling pressure
  • (y) Pressure
  • (x) Time
  • (1) Adjustable value
  • (2) Non adjustable value
  • PH : High point
  • PB : Below point
