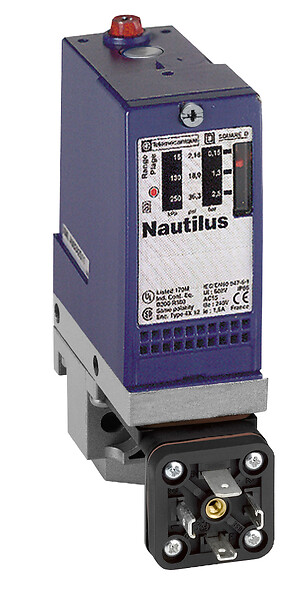

XMLA500N2C11
Pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Controlled fluid
Air (0-160 °C), corrosive fluid (0-160 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
1 male connector EN 175301-803-A (ex DIN43650), 4 pins
Contacts type and composition
1 C/O
Product specific application
Not applicable
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Pressure actuator
Piston
Materials in contact with fluid
316L stainless steel
FPM, FKM
PTFE
FPM, FKM
PTFE
Enclosure material
Zinc alloy
Terminal block type
4 terminals
Operating rate
60 cyc/mn
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting
External
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
BV
CCC
CSA
LROS (Lloyds register of shipping)
UL
CCC
CSA
LROS (Lloyds register of shipping)
UL
Protective treatment
TC standard version
Operating position
Any position
Vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.5 CENTIMETER
Package 1 width
4.2 CENTIMETER
Package 1 length
8.2 CENTIMETER
Package 1 weight
85 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir tudo
Desenhos técnicos

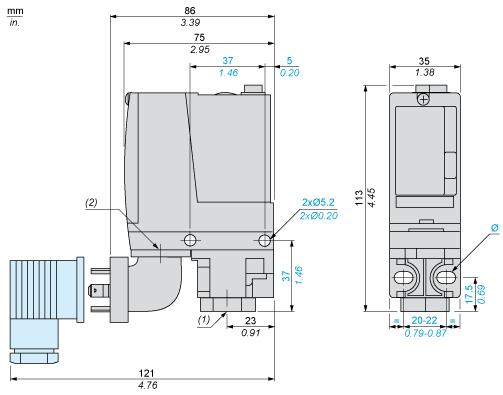

Dimensions
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) EN 175301-803-A connector
- Ø : 2 elongated holes Ø 5.2 x 6.7
Wiring Diagram
Terminal Model
Wiring Diagram
Vacuum Switch Connector Pin View
- (1) 11 and 13
- (2) 12
- (3) 14

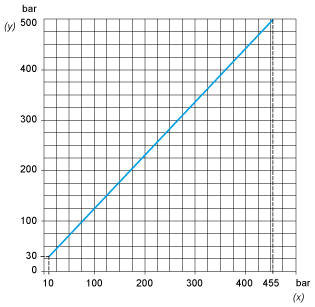

Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- (y) Rising pressure
- (x) Falling pressure
- (y) Pressure
- (x) Time
- (1) Adjustable value
- (2) Non adjustable value
- PH : High point
- PB : Below point
