XMLC300D2S13
Pressure switch XMLC 300 bar - adjustable scale 2 thresholds - 2 C/O
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLC
Fluid connection type
1/4" - 18 NPTF (female)
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
Electrical circuit type
Control circuit
AWG gauge
AWG 20...AWG 14
Pressure switch type of operation
Regulation between 2 thresholds
Cable entry
Cable gland 7-13 mm
Contacts type and composition
2 C/O
Product specific application
Not applicable
Materials in contact with fluid
Brass
FPM, FKM
PTFE
steel
FPM, FKM
PTFE
steel
Pressure actuator
Piston
Scale type
Adjustable differential
Controlled fluid
Hydraulic oil (0-160 °C)
Local display
With
Enclosure material
Zinc alloy
Terminal block type
8 terminals
Operating rate
60 cyc/mn
Setting
External
Auxiliary contacts operation
Simultaneous, snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14-11-12)OF
Operating position
Any position
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TC standard version
IP degree of protection
IP66 conforming to IEC 60529
Vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
Package 1 height
6 CENTIMETER
Unit type of package 1
PCE
Package 1 width
15 CENTIMETER
Number of units in package 1
1
Package 1 length
10.7 CENTIMETER
Package 1 weight
870 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir tudo
Desenhos técnicos
Dimensions
- (1) 1 fluid entry, tapped 1/4" NPTF
- (2) 1 electrical connections entry, tapped 1/2" NPT
- Ø : 2 elongated holes Ø 5.2 x 6.7
Wiring Diagram
Terminal Model

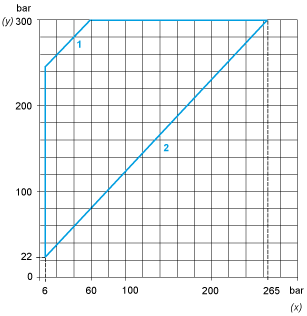

Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Pressure
- (x) Time
- (1) Adjustable value
- PH : High point
- PB : Below point
