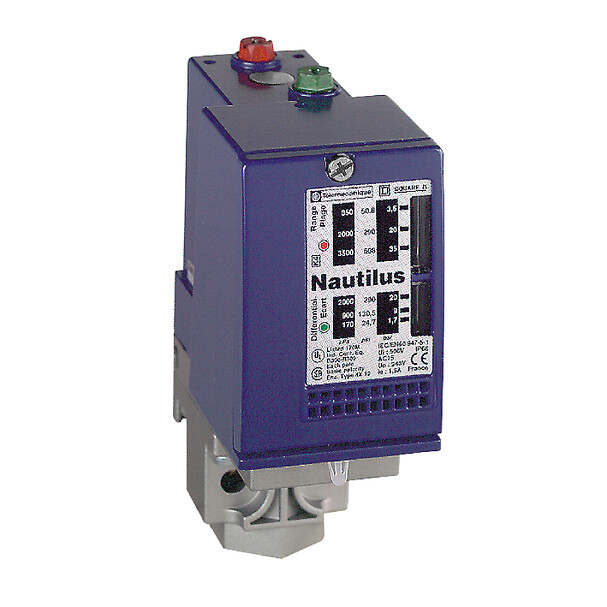

XMLCM05A2S11
Pressure switch, XMLC, pressure range 5 bar, adjustable scale, 2CO, 2 thresholds
COMMERCIALISED
Expandir tudo
Folha de dados
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical vacuum-pressure sensor
Device short name
XMLC
Controlled fluid
Air (0-70 °C), fresh water (0-70 °C), hydraulic oil (0-70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
AWG gauge
AWG 20...AWG 14
Cable entry
Cable gland 9-13 mm
Contacts type and composition
2 C/O
Product specific application
Not applicable
Pressure switch type of operation
Regulation between 2 thresholds
Electrical circuit type
Control circuit
Scale type
Adjustable differential
Local display
With
Pressure actuator
Diaphragm
Materials in contact with fluid
304L stainless steel
nitrile
zinc alloy
nitrile
zinc alloy
Enclosure material
Zinc alloy
Terminal block type
8 terminals
Operating rate
120 cyc/mn
Auxiliary contacts operation
Simultaneous, snap action
Contacts material
Silver contacts
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Setting
External
Standards
CE
CSA C22.2 No 14
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60947-5-1
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TC standard version
Operating position
Any position
Vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
IP degree of protection
IP66 conforming to IEC 60529
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
10.7 CENTIMETER
Package 1 weight
0.87 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
4
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.705 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
13
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
9.913 KILOGRAM
Indivisible sale quantity
1
Expandir tudo
Desenhos técnicos

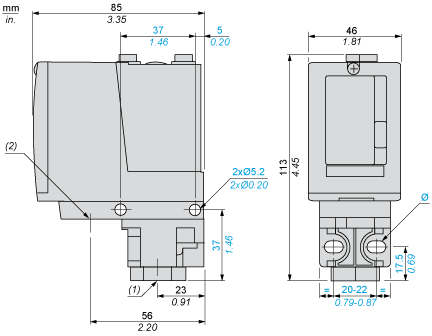

Dimensions
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) 1 electrical connections entry, tapped Pg 13.5
- Ø : 2 elongated holes Ø 5.2 x 6.7
Wiring Diagram
Terminal Model

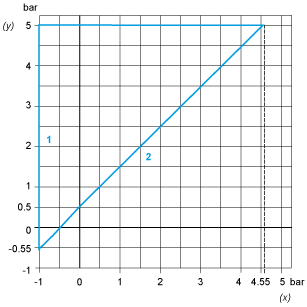

Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Pressure
- (x) Time
- (z) Vacuum
- (1) Adjustable value
- PH : High point
- PB : Below point
