XMLEZ010

Local display - for electronic pressure sensor 10 bar

End of commercialisation Data do fim da comercialização : Data do fim do serviço :

Baixar folha de dados em pdf Download do arquivo 3d cad Encontre um distribuidor

Expandir tudo

Folha de dados

Accessory / separate part type
Display
Display type
Digital display
Operating position
Any position
Product compatibility
XMLE analogue pressure sensors 0-10 bar, connector type: EN 175301-803-A (ex DIN43650), XMLP analogue pressure sensors, connector type: EN 175301-803-A (ex DIN43650)
Protective treatment
TC
IP degree of protection
IP65 conforming to EN/IEC 60529
Vibration resistance
35 gn (f = 60-2000 Hz), 5 gn (f = 25-200 Hz)
Standards
CE
EN 50081
EN 50082
Product certifications
CSA
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.6 CENTIMETER
Package 1 width
11.5 CENTIMETER
Package 1 length
9.3 CENTIMETER
Package 1 weight
123 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expandir tudo

Desenhos técnicos

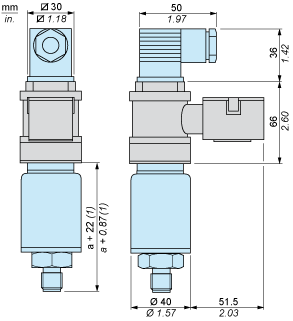

Dimensions

epds
  • (1) a = 65
