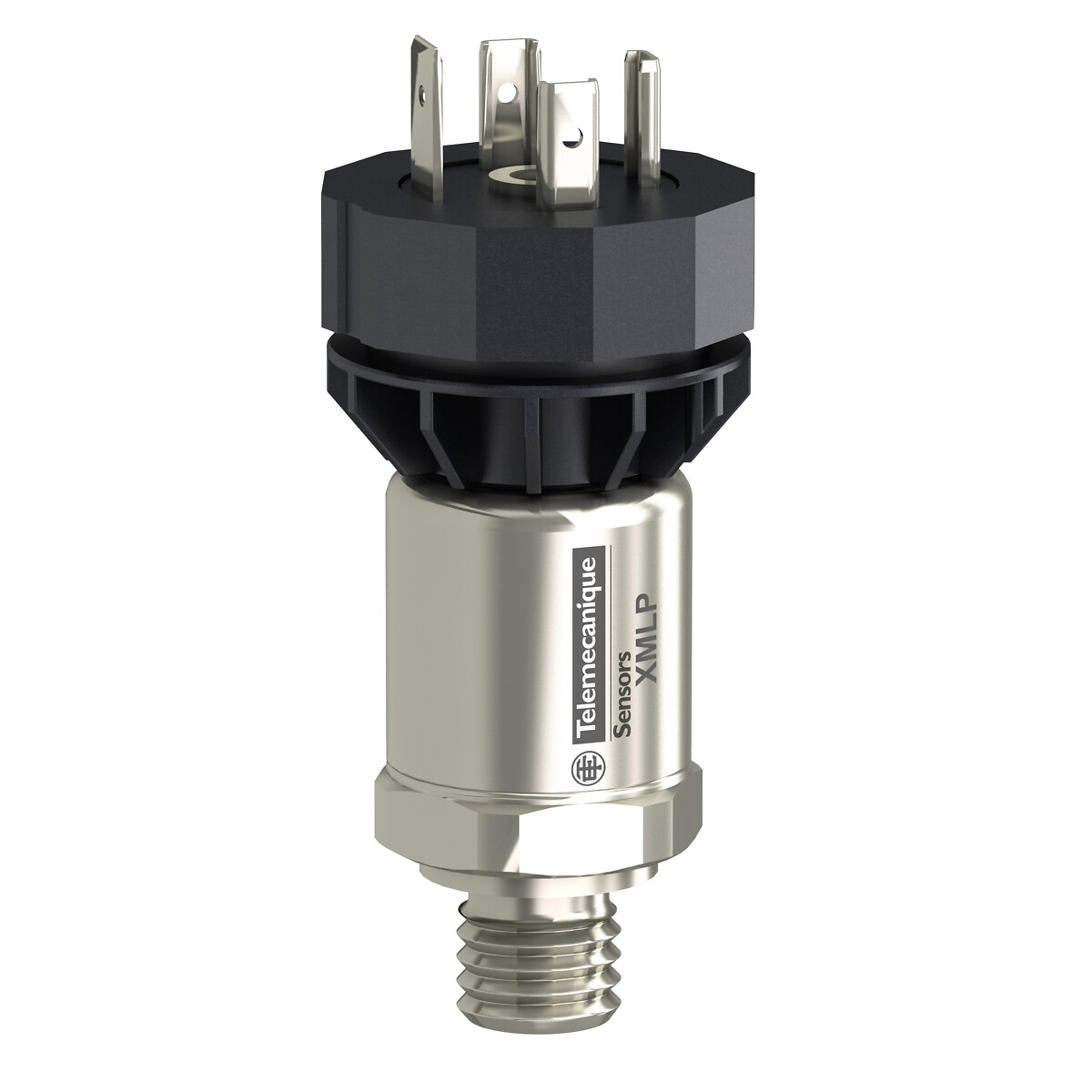

XMLP010BC21V
Pressure sensor, XMLP, pressure range 10 bar, output 4-20 mA, G1/4A male, DIN connector, Viton seal
END OF COMMERCIALISATION
XMLP010BC21V is replaced by the following product:
Quantity : 1
Expandir tudo
Folha de dados
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure sensor name
XMLP
Fluid connection type
G 1/4A (male) conforming to DIN 3852-E
Electrical circuit type
Control circuit
Electrical connection
1 male connector EN 175301-803-A (ex DIN43650) 3 pins
Type of output signal
Analogue
[Us] rated supply voltage
12...24 V DC SELV (voltage limits: 8-30 V)
Analogue output function
4...20 mA, 2-wire
Quantity per set
Set of 1
Type of packing
Individual
Materials in contact with fluid
Fluorocarbon FKM (Viton)
stainless steel type 17-4PH
stainless steel type AISI 304
stainless steel type 17-4PH
stainless steel type AISI 304
Scale type
Fixed differential
Controlled fluid
Air (-20-120 °C), fresh water (0-120 °C), hydraulic oil (-20-120 °C), gas (-20-120 °C), refrigeration fluid (-20-120 °C)
Local display
Without
Current consumption
20 mA
Electromagnetic compatibility
Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact
Protection type
Load short-circuit
reverse polarity
reverse polarity
Response time on output
< 5 ms 92 % of full scale
Accuracy
Infinity
Drift of the sensitivity
+/- 0,02 % of measuring range/°K
Drift of the zero point
+/- 0,02 % of measuring range/°K
Repeat accuracy
+/- 0,2 % de la plage de mesure
Measurement accuracy
+/- 0,5 % de la plage de mesure
Operating position
Any position
Standards
CE
EN/IEC 61326-1
EN/IEC 61326-1
Product certifications
cULus
RCM
RCM
Protective treatment
TC
Vibration resistance
20 gn (f = 10-2000 Hz) conforming to EN/IEC 60068-2-64
Shock resistance
25 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
California proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Package 1 height
4.1 CENTIMETER
Unit type of package 1
PCE
Package 1 width
6.4 CENTIMETER
Number of units in package 1
1
Package 1 length
9.4 CENTIMETER
Package 1 weight
63 GRAM
