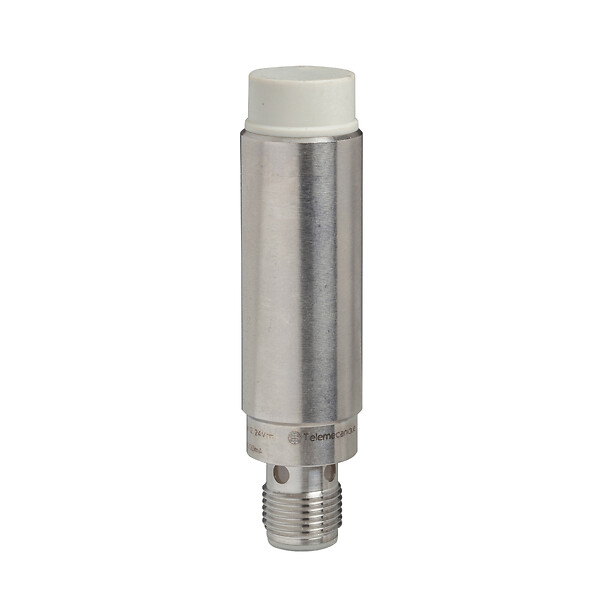

XS2L1436102
Inductive proximity sensors XS, inductive sensor XS2, twice sensors connector output
End of commercialisation Data do fim da comercialização : May 31st 2023 Data do fim do serviço : May 31st 2023
Expandir tudo
Folha de dados
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS2
Body type
Fixed
Type of output signal
Discrete
Detector flush mounting acceptance
Non flush mountable
Material
Stainless steel
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Stainless steel
Detection face
Frontal
Front material
PPS
Marking
CE
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
14.8 CENTIMETER
Package 1 weight
186 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
