ZC2JY51

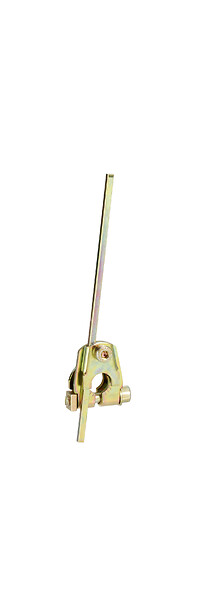

Limit switch lever, Limit switches XC Standard, ZC2JY, steel square rod 3 mm, -40...120 °C
Commercialised
Expandir tudo
Folha de dados
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch lever
Device short name
ZC2J
Product compatibility
XC2J
Movement of operating head
Rotary
Type of operator
Rod lever spring return metal (square rod 3 mm, L = 125 mm)
Type of approach
Lateral approach
Switch actuation
By any moving part
Positive opening
Without
Environmental characteristic
High temperature
low temperature
standard environment
low temperature
standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
