ZCKJ4104

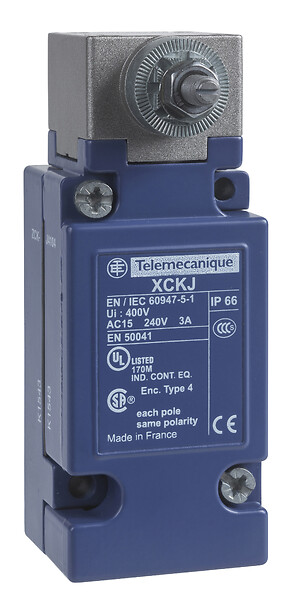

Limit switch body with spring return rotary head, Limit switches XC Standard, ZCKJ, w/o lever, plug in, 2C/O, snap, Pg13
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body with spring return rotary head
Device short name
ZCKJ
Body type
Plug-in body
Product compatibility
XCKJ
Body material
Metal
Cable entry
1 entry tapped for Pg 13.5 cable gland
Contacts type and composition
2 C/O
Contact operation
Snap action
Contacts material
Silver plated contacts
Switch actuation
From left and right
Local display
Without
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Positive opening
Without
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(21-22)NC
(23-24)NO
(13-14)NO
(21-22)NC
(23-24)NO
IP degree of protection
IP66
IK degree of protection
IK07
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
9
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.455 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
