ZCKY59

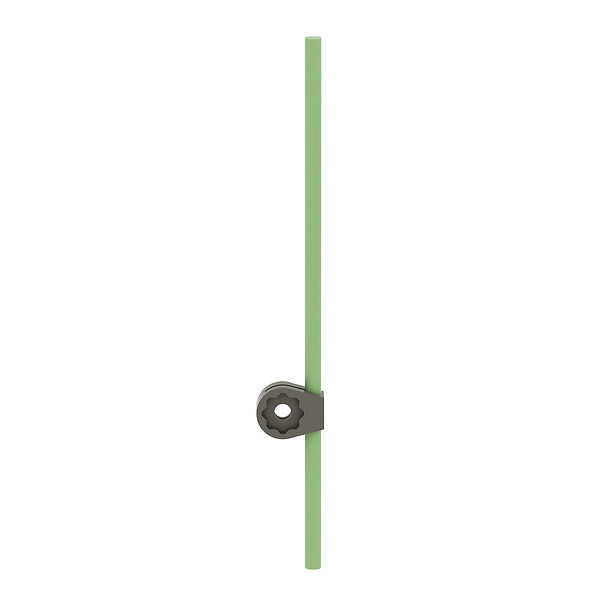

Limit switch lever, Limit switches XC Standard, ZCKY, thermoplastic plastic round rod 6 mm L=200 mm, -40...70 °C
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Limit switches XC Standard
Device short name
ZCKY
Product compatibility
XCKJ
XCKL
XCKM
XCKS
XCKL
XCKM
XCKS
Product or component type
Limit switch lever
Series name
Standard format
Device presentation
Basic element
Movement of operating head
Rotary
Type of approach
Lateral approach
Type of operator
Rod lever spring return thermoplastic (round rod 6 mm, L = 200 mm)
Switch actuation
By any moving part
Positive opening
Without
Environmental characteristic
Low temperature
standard environment
standard environment
Compatibility code
ZCKY
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
10 CENTIMETER
Package 1 length
26 CENTIMETER
Package 1 weight
23 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.68 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
960
Package 3 height
45 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
34.18 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
