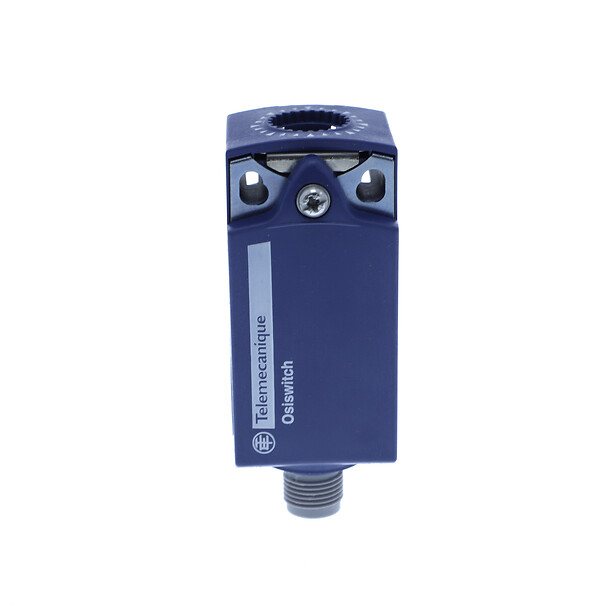

ZCP21M12
Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, snap action, M12 4P
Commercialised
Expandir tudo
Folha de dados
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard compact
Product or component type
Limit switch body
Device short name
ZCP
Design
Compact
Body type
Fixed
Body material
Plastic
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Electrical connection
Male connector M12, 4 pins
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Product compatibility
XCKP
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
77
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.463 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
