SC350A400FP
Hyde Park, Ultrasonic sensor, discrete, flat profile, 12 24 V DC
Commercialised
Expand all
Datasheet
Range of product
Hyde Park
Sensor type
Ultrasonic sensor
Series name
Superprox +
Sensor design
Flat form
Material
Plastic
Type of output signal
Discrete
Type of sensing window
Configurable
Wiring technique
4-wire
[Us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Electrical connection
Remote male connector M8 4 pins, 152 mm cable length
Product specific application
Discrete proximity
Enclosure material
ULTEM
Front material
Glass epoxy
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 1 mm sensing distance
Current consumption
25 mA
IP degree of protection
IP67
Marking
CE
Product certifications
UL
NEMA degree of protection
NEMA 4X (indoor use only)
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.415 CENTIMETER
Package 1 width
3.81 CENTIMETER
Package 1 length
8.415 CENTIMETER
Package 1 weight
226.796 GRAM
Indivisible sale quantity
100
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
6/19/2020
14616
6/19/2020
14724
6/19/2020
5386
6/19/2020
7054
6/19/2020
91913
6/19/2020
9756
Document name
Date
Size
Expand all
Related products & accessories

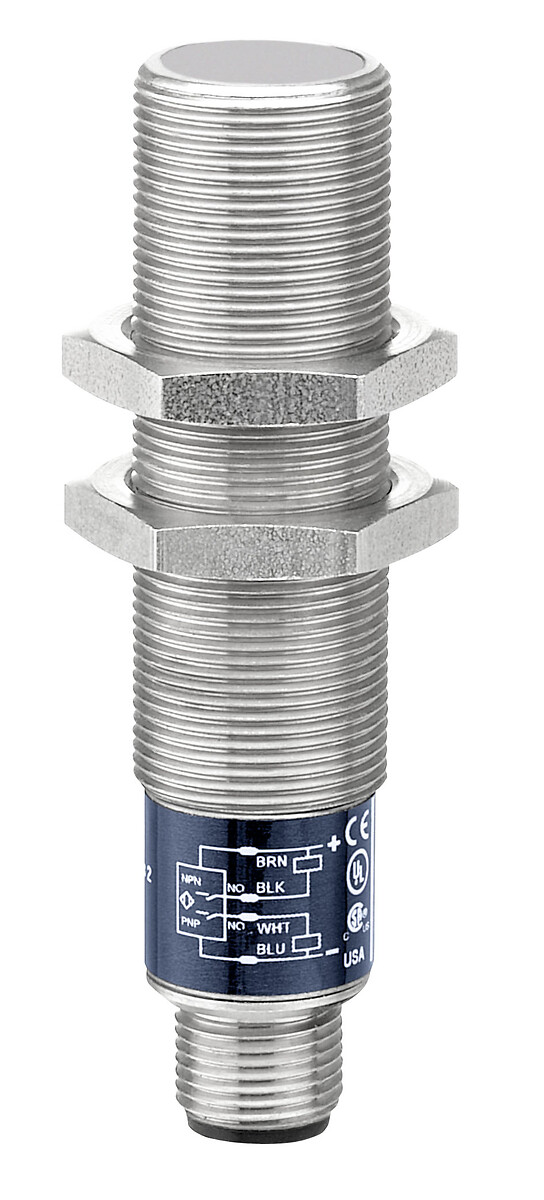

SC650AB00S
