XS1M30MB250K

Inductive proximity sensors XS, inductive sensor XS1 M30, L72mm, brass, Sn10mm, 24...240VAC/DC, 1/2"

arrow

Commercialised

Télécharger la fiche technique Download 3d cad file Trouver un distributeur

Déplier tout

Fiche technique

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Wiring configuration
2-wire
Sensor name
XS1
Device application
2-wire DC short-circuit protection
Sensor design
Cylindrical M30
Protection type
Short-circuit protection multi voltage
Size
72 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Material
Metal
Electrical connection
Male connector 1/2"20 UNF, 3 pins
[Us] rated supply voltage
24...210 V DC, 24...240 V AC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Residual current
1.5 mA open state
Status LED
Output state: 1 LED (yellow), supply on: 1 LED (green)
Switching frequency
<= 2000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed state)
Delay first up
70 MILLISECOND
Delay response
2 MILLISECOND
Marking
CE
Delay recovery
5 MILLISECOND
Product certifications
CCC
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-7
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
4.5 CENTIMETER
Package 2 width
7.2 CENTIMETER
Package 2 length
8 CENTIMETER
Package 2 weight
180 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Déplier tout

Schéma technique​

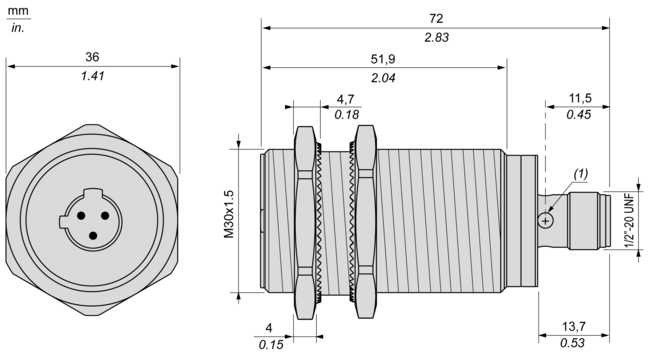

Dimensions
