XU2S18PP340WLDR

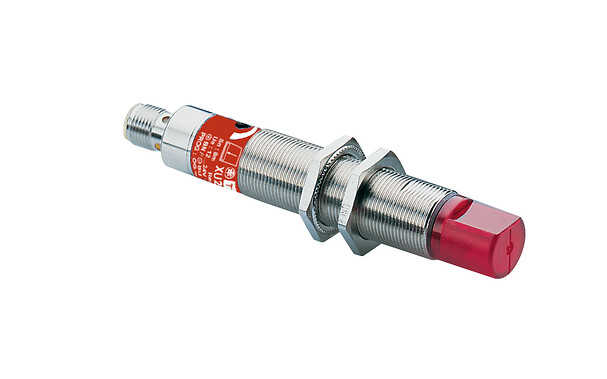

Safety thru beam receiver photo electric sensors, Preventa Safety detection, light curtain XU2 S, of body, Sn 8 m, 12...24 VDC, M12

arrow

Commercialised

Expand all

Datasheet

Range of product
Telemecanique Safety light curtains XUSL
Output type
-
Detection system
Transmitter-receiver system
[Us] rated supply voltage
-
Current consumption
-
Electrical connection
-
Cable composition
4 x 0.34 mm²
Material
-
IP degree of protection
-
Shock resistance
-
Vibration resistance
-
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.6 CENTIMETER
Package 1 width
9.4 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
200 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

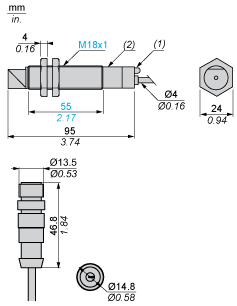

Dimensions

epds
  • (1) LED
  • (2) Potentiometer

Wiring Schemes (3-wire DC)

Receiver

epds

Receiver

epds

Wiring Schemes (3-wire DC)

Connector Pin View

epds
  • (1) (+)
  • (2) Programming
  • (3) (-)
  • (4) Output

Connecting to a Safety Module

epds
  • 1 : Click on Download & Documents
  • 2 : Click on System user guide

Curves

Infrared Detection Curve

epds
  • (1) Ø of beam

Curves

Verification of Correct Operation

epds
  • (1) Ø of beam
  • (1) LED off
  • (2) LED on
  • (3) Red LED
  • (4) Signal level
  • (5) Optimum alignment
