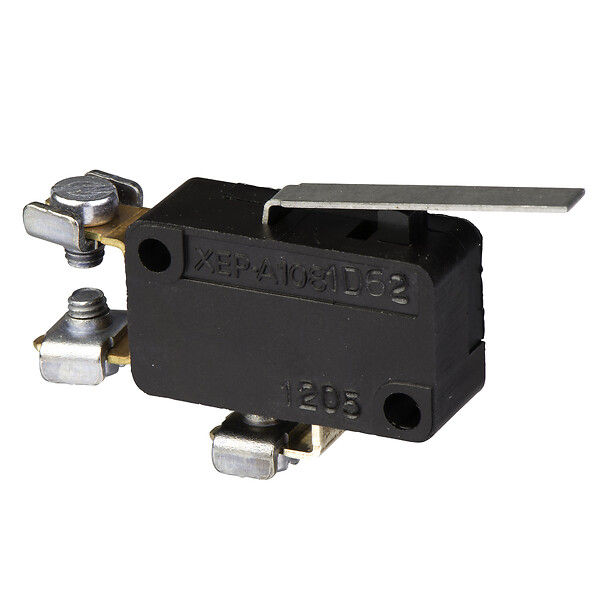

XEPA1081D62
Microswitch, Limit switches XC Standard, Limit switch, plunger head, roller lever operation
End of commercialisation Date d'arrêt de fabrication : Fin de prestation de service :
XEPA1081D62 is replaced by the following product:
XEP3S1W3B524
Microswitch, Limit switches XC Standard, miniature limit switch, flat lever, 6.35 mm cable clip tags
Quantity : 1
Déplier tout
Fiche technique
Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XEPA
Detector design
Subminiature, DIN 41635 B format, sealed
Head type
Plunger head
Lever material
Glass reinforced polyamide roller
stainless steel
stainless steel
Lever fixing position
A
Movement of operating head
Linear
Type of operator
Roller lever
Type of approach
Lateral approach
Electrical connection
2.8 mm cable clip tags
Contacts type and composition
1 C/O standard
Contact operation
Snap action
Contacts material
AgCdO
Body material
Polyester
Tags material
Tinned brass
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Terminals description ISO n°1
(1-2-4)OC
IP degree of protection
IP67
Marking
CE
Standards
CURus
IEC 60947-5-1
IEC 61058
UL 1054
IEC 60947-5-1
IEC 61058
UL 1054
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 CENTIMETER
Package 1 width
3 CENTIMETER
Package 1 length
5 CENTIMETER
Package 1 weight
12 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
