XT518B1FAL2

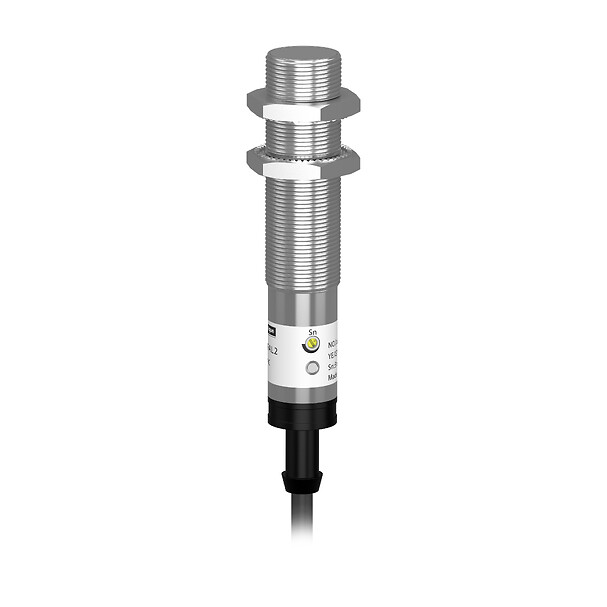

Capacitive proximity sensors XT, cylindrical M18, brass, 2-wire, Sn 5 mm, cable 2 m, 1 NO

arrow

Commercialised

Déplier tout

Fiche technique

Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT5
Sensor design
Cylindrical M18
Size
90 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Metal
Enclosure material
Nickel plated brass
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Output circuit type
AC
Electrical connection
Cable
[Us] rated supply voltage
24...240 V AC 50...60 Hz
Delay response
30 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
ISO thread
M18 x 1
Detection face
Frontal
Differential travel
< 0.2 x Sr
Repeat accuracy
< 0.1 x Sr
Wire insulation material
PVC
Status LED
Output state indication: 1 LED (yellow)
Residual current
5 mA open state
Switching frequency
<= 10 Hz
Voltage drop
<10 V (closed)
Current consumption
< 3 mA
Delay first up
200 MILLISECOND
Delay recovery
30 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Standards
IEC 60947-5-2
UL 61010-1
Product certifications
cULus
Vibration resistance
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Electrical insulation class
Class I conforming to IEC 61140
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
3.9 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
0.134 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.36 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Déplier tout

Schéma technique​

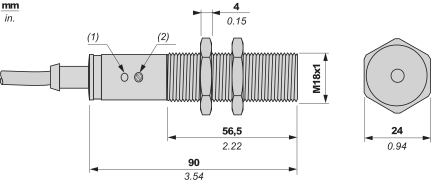

Dimensions
