XUB0APSWL2

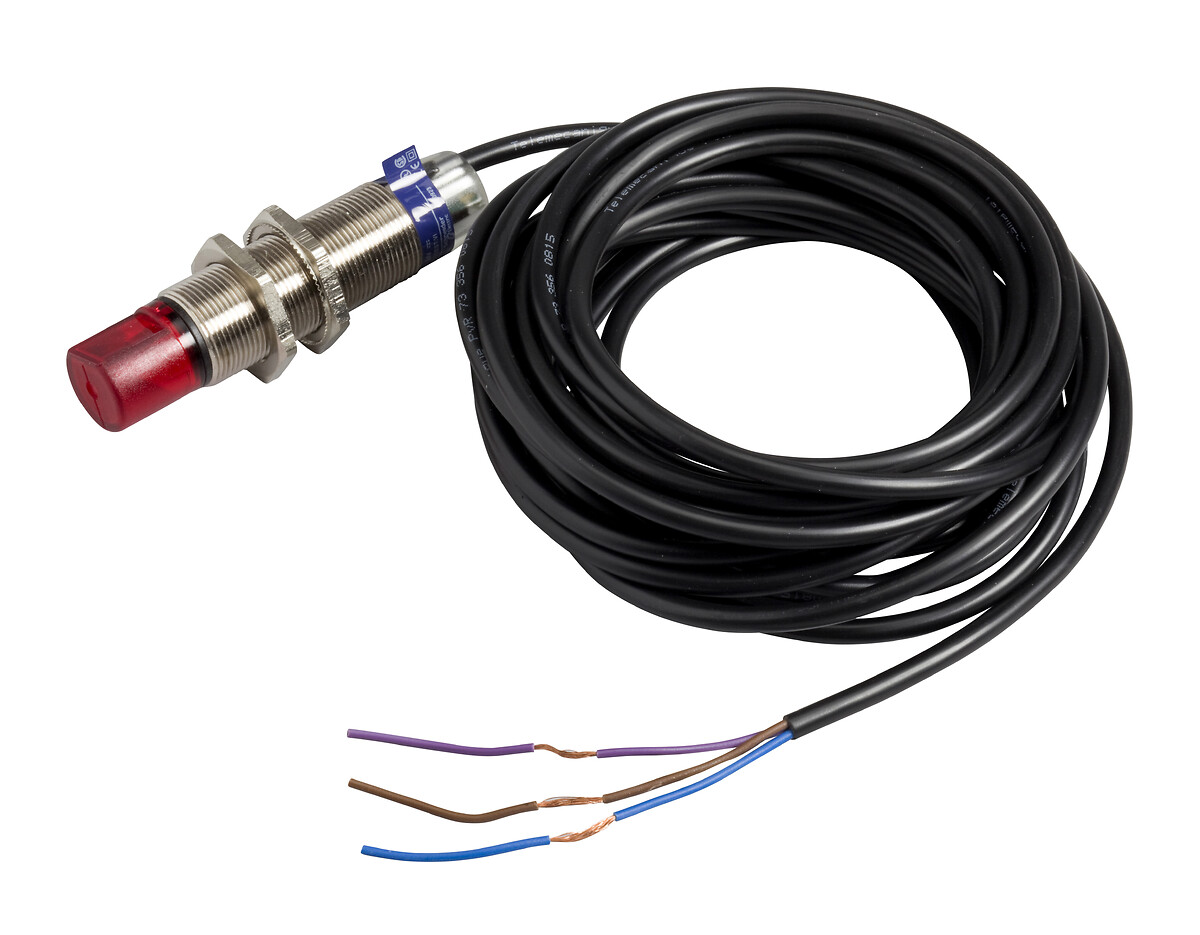

Photo-electric sensor - XUB - multi - 90° - Sn 0..7m - 12..24VDC - cable 2m
End of commercialisation Date d'arrêt de fabrication : Fin de prestation de service :
XUB0APSWL2 is replaced by the following product:
Quantity : 1
Déplier tout
Fiche technique
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose multimode
Electronic sensor type
Photo-electric sensor
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Multimode
Material
Plastic
Line of sight type
90° lateral
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Add on output
Without
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
250 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
200 MILLISECOND
Delay response
2 MILLISECOND
Delay recovery
2 MILLISECOND
Setting-up
Self teaching
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
