Photoelectric sensors XU, miniature, thru beam, Smax=30 m, system, PNP, connector M8
Commercialised
Déplier tout
Fiche technique
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Sensing range
0...30 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V
Current consumption
20 mA for transmitter, 20 mA for receiver
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
Kit composition
Transmitter + receiver XUM2AKXBM8T + XUM2APXBM8R
Supply voltage limits
10-30 V DC
Immunity to ambient light
40000 lux sunlight, 10000 lux incandescent light
Relative humidity
35-95 %
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.2 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.021 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
120
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.012 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Déplier tout
Schéma technique
Dimensions
Dimensions

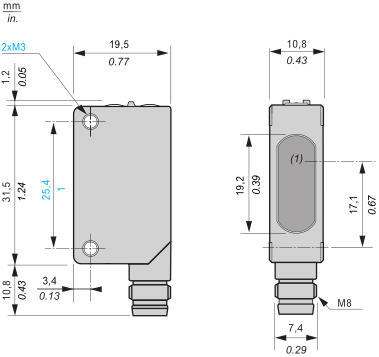

Transmitter
Dimensions

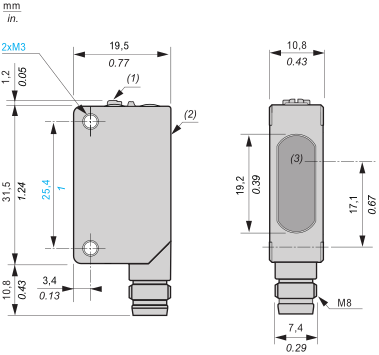

Receiver
Connection and schema
Connection and schema

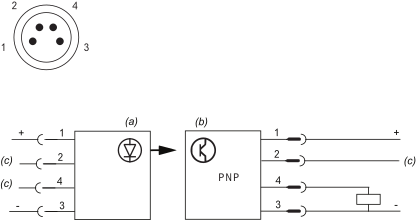

Wiring diagram
Detection curves
Detection curves

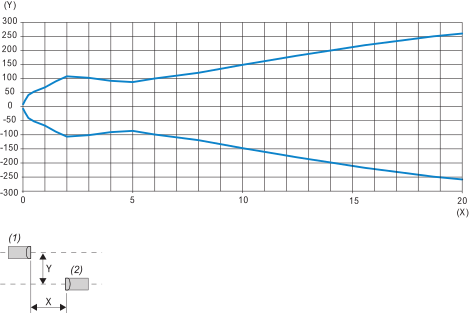

Lateral displacement
Detection curves

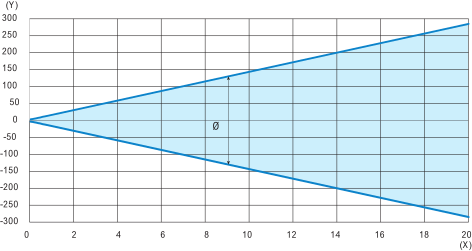

Light beam diameter
Detection curves

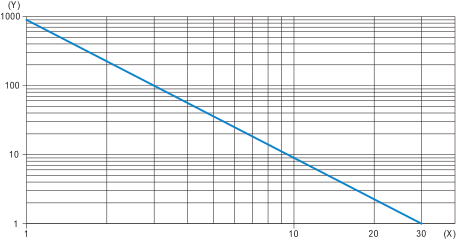

Excess gain
Déplier tout
Documents et téléchargements
Document name
Date
Taille
2025-01-02
271517281
2024-02-07
4761451
2024-02-07
4813972
Document name
Date
Taille
2021-05-19
1174419
2021-08-16
1153355
2025-01-22
1742650
2025-01-22
744113
Document name
Date
Taille
3/25/2021
42411
Document name
Date
Taille
2023-03-01
2304344
2025-05-11
3472696
2025-05-11
3374350
2023-03-01
2854704
Document name
Date
Taille
Déplier tout
Produits et accessoires associés
XUZA50

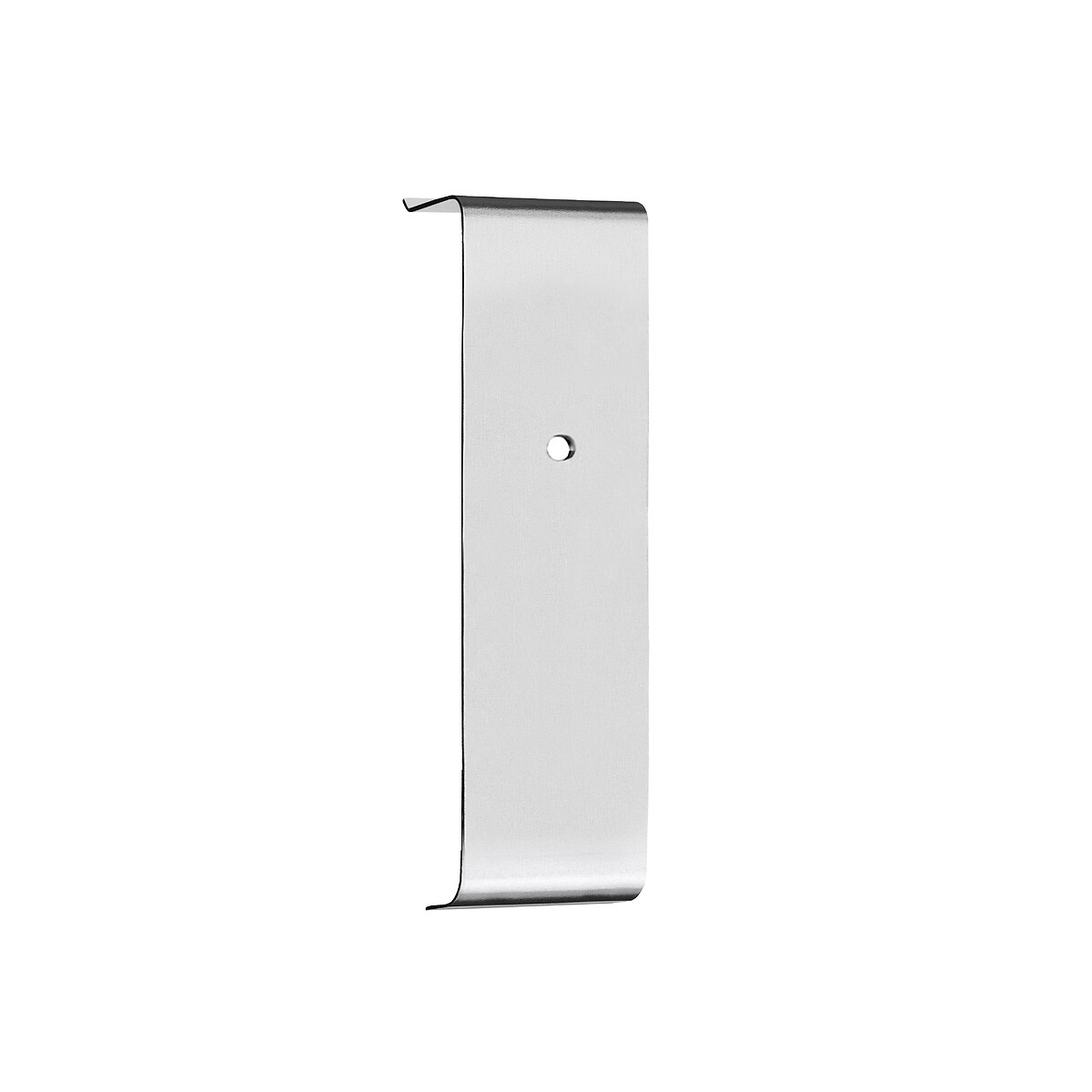

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUM, metal
XUZASM04
Photoelectric sensors XU, accessory for sensor, XUM, Rear mounting bracket, 2 M3 screws
XUZASM05
Air blower mounting block for cleaning the sensitive face of the sensor using compressed air
XUZDHM05

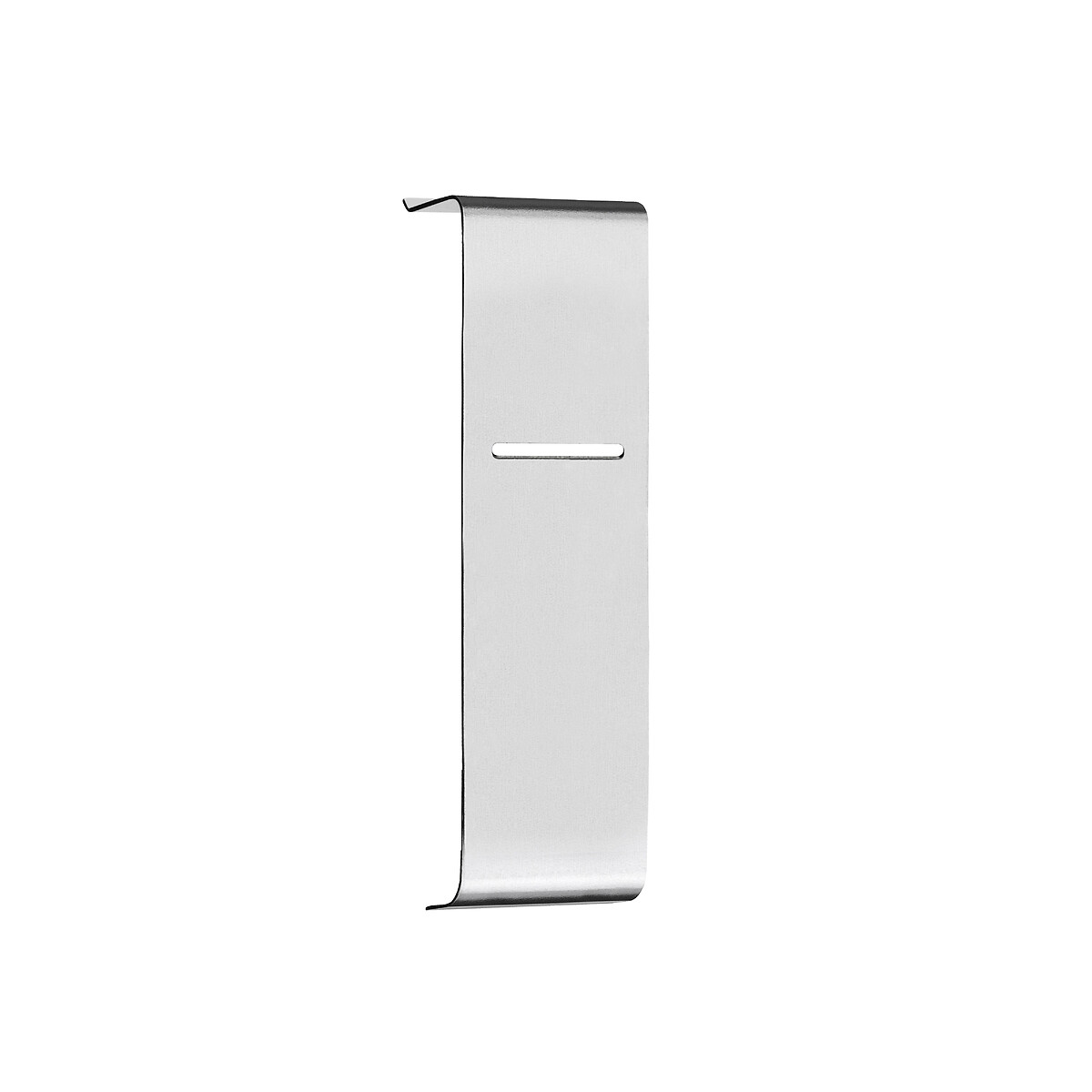

Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 0.7 m, width 0.5mm
XUZDHM10
Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 1.5 m, width 1mm
XUZDHM20
Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 3 m, width 2mm
XUZDRM05
Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 0.08 m, width 0.5mm
XUZDRM10
Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 0.3 m, width 1mm
XUZDRM20
Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 1.2 m, width 2mm
XUZDVM05

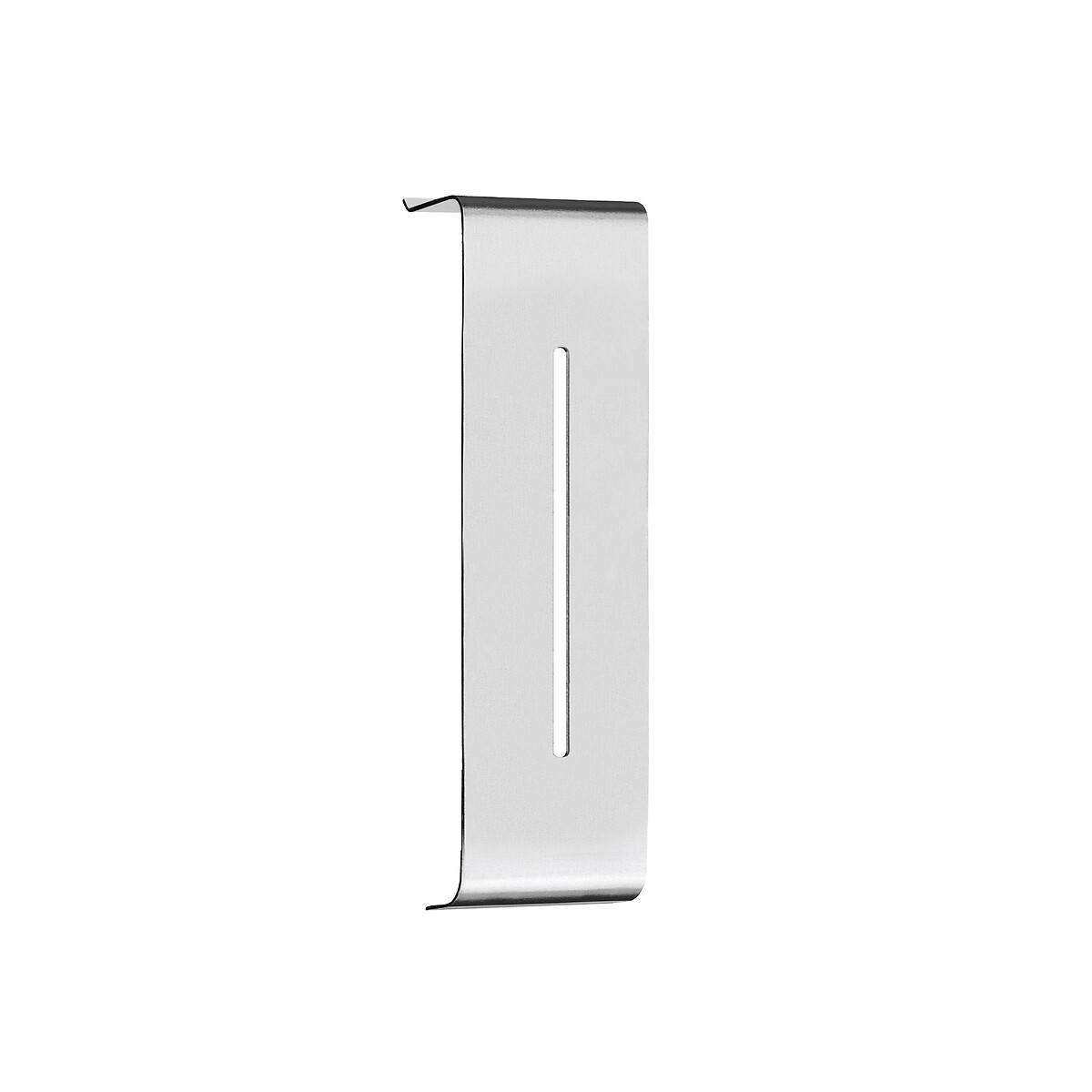

Photoelectric sensors XU, accessory for sensor, XUM, Vertical diaphragm, Sn 1 m, width 0.5mm
