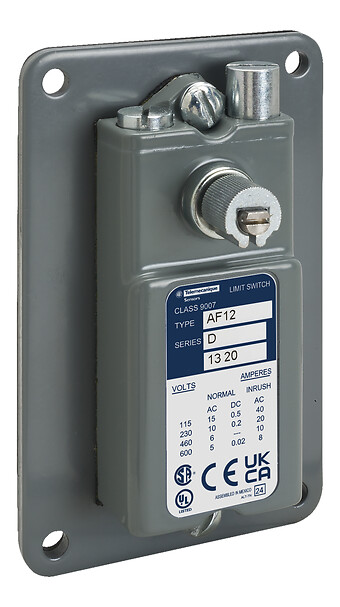

9007AF12
Limit switch, 9007, 75037, 134, 50
Commercialised
Expand all
Datasheet
Range of product
9007
Series name
Heavy duty
Product or component type
Limit switch
Device short name
9007AW
Product specific application
Precision
Body type
Fixed
Mounting mode
Flush mounting
Operator profile
Rotary head
Material
Metal
Body material
Cast zinc
Operator material
Cast zinc
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return without operating lever cast zinc
Switch actuation
CCW convertible to CW
from left convertible to right
from left convertible to right
Type of approach
Lateral approach, 1 direction programmable
Electrical connection
1-2 cables for screw-clamp terminals (AWG 22...AWG 12)
Contacts type and composition
NC-NO, switch function: SPDT-DB
Contact form
Form Z
Contact operation
Snap action
Contacts material
Silver contacts
Positive opening
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Repeat accuracy
+/- 0.002 in linear travel of cam on 1.38 in long lever arm
NEMA degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
IP degree of protection
IP65 conforming to IEC 60529
Protective treatment
Epoxy powder coat
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
32.258 CENTIMETER
Package 1 width
12.7 CENTIMETER
Package 1 length
81.935 CENTIMETER
Package 1 weight
235.868 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
