XCPR2921P20

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCPR

Compact

With

Fixed

Plunger head

Plastic

Plastic

Zamak

By the body

Linear

Spring return roller lever plunger thermoplastic

Lateral approach, 1 direction

1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm

1 NC + 1 NC

Snap action

By 30° cam

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Zb

With

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

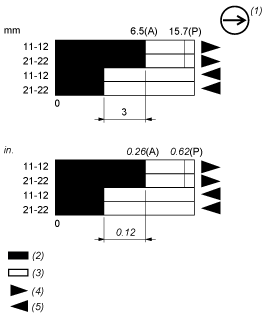

(11-12)NC
(21-22)NC

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

IK04 conforming to IEC 62262

Class II conforming to IEC 61140, class II conforming to NF C 20-030

TC

CSA
UL

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

19.2 CENTIMETER

5.4 CENTIMETER

6 CENTIMETER

142 KILOGRAM

1

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
