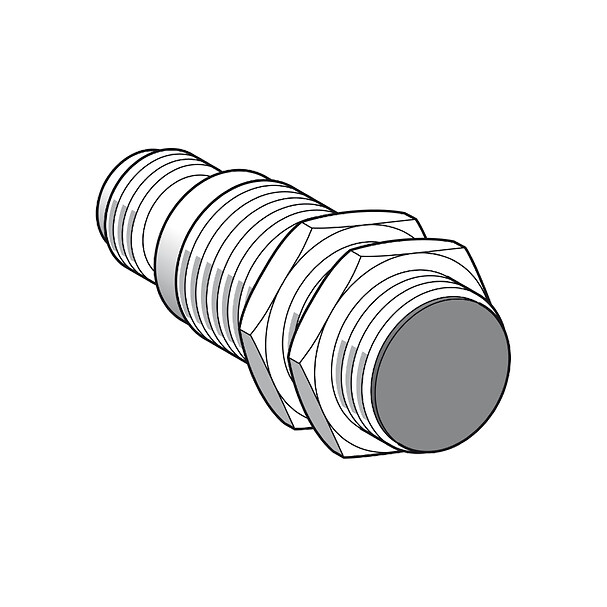

XS4P30MA230A
Inductive proximity sensors XS, inductive sensor XS4 M30, L75mm, PPS, Sn15mm, 24...240VAC/DC, 7/8"
End of commercialisation End of commercialization date : End of service date :
XS4P30MA230A is replaced by the following product:
XS4P30MA230
Inductive proximity sensors XS, inductive sensor XS4 M30, L62mm, PPS, Sn15mm, 24...240VAC/DC, cable 2 m
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS4
Sensor design
Cylindrical M30
Size
75 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Electrical connection
Male connector 7/8"16 UNF, 3 pins
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Output circuit type
AC/DC
Switching capacity in mA
5...200 mA DC, 5...300 mA AC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
PPS
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Differential travel
1...15 % of Sr
Residual current
0.6 mA open state
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz DC, <= 25 Hz AC
Voltage drop
<5.5 V (closed)
Delay first up
40 MILLISECOND
Delay response
0.2 MILLISECOND
Marking
CE
Delay recovery
0.4 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
7.2 CENTIMETER
Package 1 length
8.2 CENTIMETER
Package 1 weight
101 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

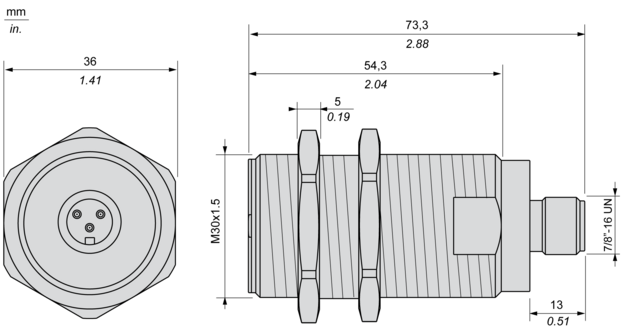

Dimensions
Minimum Mounting Distances
Performance Curves
Standard Steel Target : 45x45x1 mm
