XT7C40PC440

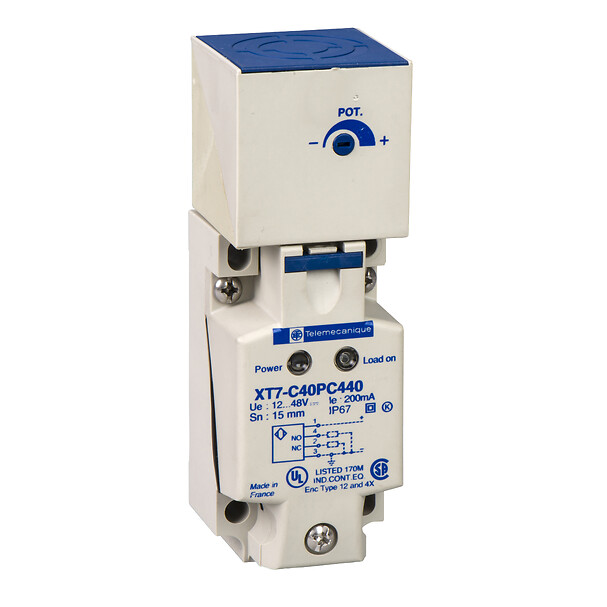

Capacitive proximity sensors XT, 40 x 40 x 117, plastic, Sn 15 mm, 12...48 V DC
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Capacitive proximity sensors XT
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT7
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Plug-in body
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NC + 1 NO
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Screw clamp terminal, 4 x 1.5 mm²
[Us] rated supply voltage
12...48 V DC
Delay response
5 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Detection face
5 positions turret head
Cable entry
1 entry tapped for Pg 13.5 cable gland
Differential travel
< 0.2 x Sr
Repeat accuracy
< 0.1 x Sr
Status LED
Supply state indication: 1 LED (green), output state indication: 1 LED (yellow)
Protection type
Short-circuit protection
Switching frequency
<= 100 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA
Delay first up
30 MILLISECOND
Delay recovery
5 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.6 CENTIMETER
Package 1 width
13.6 CENTIMETER
Package 1 length
4.6 CENTIMETER
Package 1 weight
228 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)

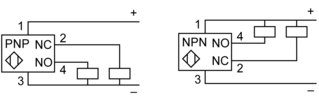

Wiring Diagram
