XUBTAPSNL2
Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUBT
Series name
Application packaging
Product specific application
Detection of transparent object
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Electrical connection
Cable
Material
Plastic
Wiring technique
3-wire
Detection system
Reflex
Emission
Coaxial polarised red reflex
Kit composition

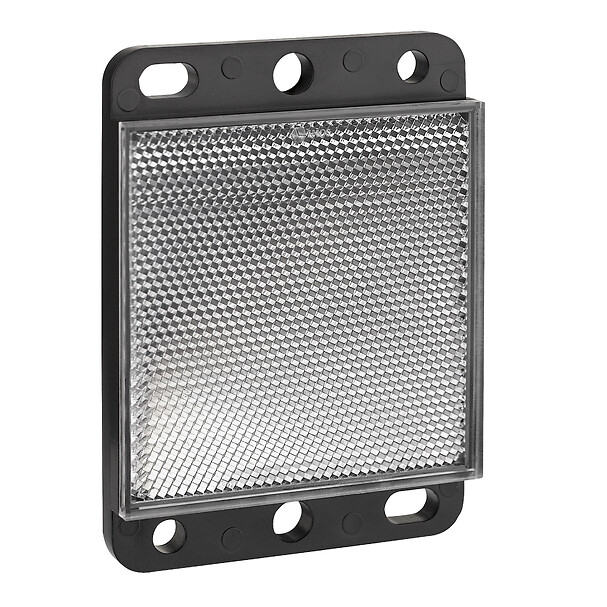

Reflector XUZC50HP
sensor
sensor
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
500 MILLISECOND
Current consumption
45 mA no-load
Status LED
-
Output type
Solid state
Switching capacity in mA
100 mA (overload and short-circuit protection)
Lens material
PMMA
Spot diameter
37 mm
Sensing range
> 1...5 m
Voltage drop
<1.5 V (closed state)
Delay first up
200 MILLISECOND
Delay recovery
500 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529 (double insulation), IP67 conforming to IEC 60529 (double insulation)
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.6 CENTIMETER
Package 1 width
12.8 CENTIMETER
Package 1 length
7 CENTIMETER
Package 1 weight
0.108 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.082 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13.2 CENTIMETER
Package 3 width
3.8 CENTIMETER
Package 3 length
7 CENTIMETER
Package 3 weight
0.108 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
