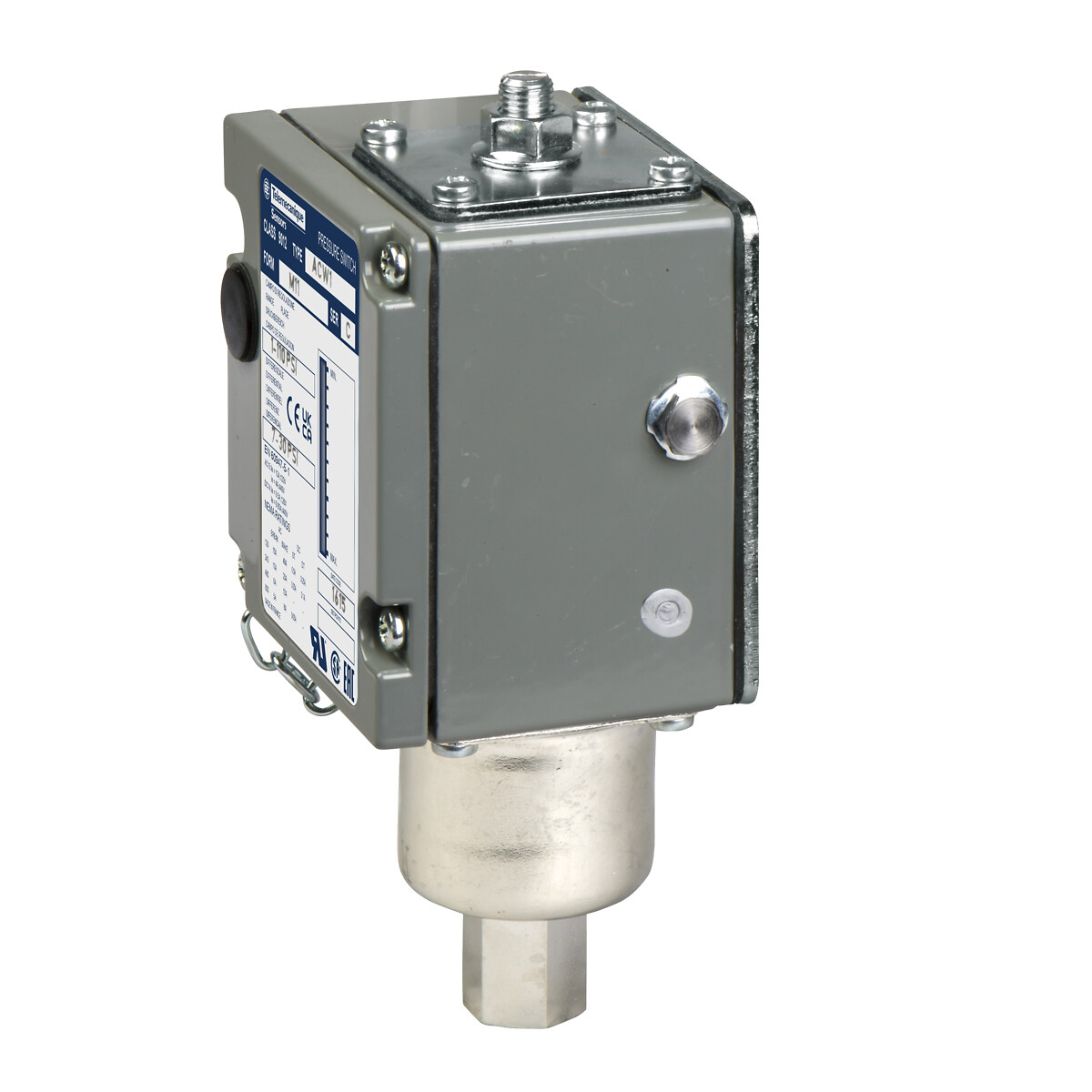

ACW5M119012
Pressure sensors XM, pressostat, with 0,07 to 7,6 bars, ACW5
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor name
ACW
Pressure sensor type
Electromechanical pressure sensor
Product specific application
For regulation between 2 thresholds
Scale type
Adjustable differential
Contacts type and composition
1 C/O snap action
Cable entry
1 entry tapped for ISO M20 cable gland
Fluid connection type
G 1/4 (female) conforming to ISO 228
Materials in contact with fluid
Phosphor bronze
Pressure actuator
Bellows
Electrical circuit type
Control circuit
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²
Controlled fluid
Air (-73-125 °C), hydraulic oil (-73-125 °C), non-corrosive fluid (-73-125 °C)
Enclosure material
Zinc alloy
Setting
External
Local display
Without
Terminals description ISO n°1
(1-2)NC
(3-4)NO
(3-4)NO
Protective treatment
TC
Standards
CE
IEC 60947-5-1
IEC 60947-5-1
Product certifications
CSA
UL recognized
UL recognized
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.2 CENTIMETER
Package 1 width
10.5 CENTIMETER
Package 1 length
20.5 CENTIMETER
Package 1 weight
1.551 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
