SM956A432000

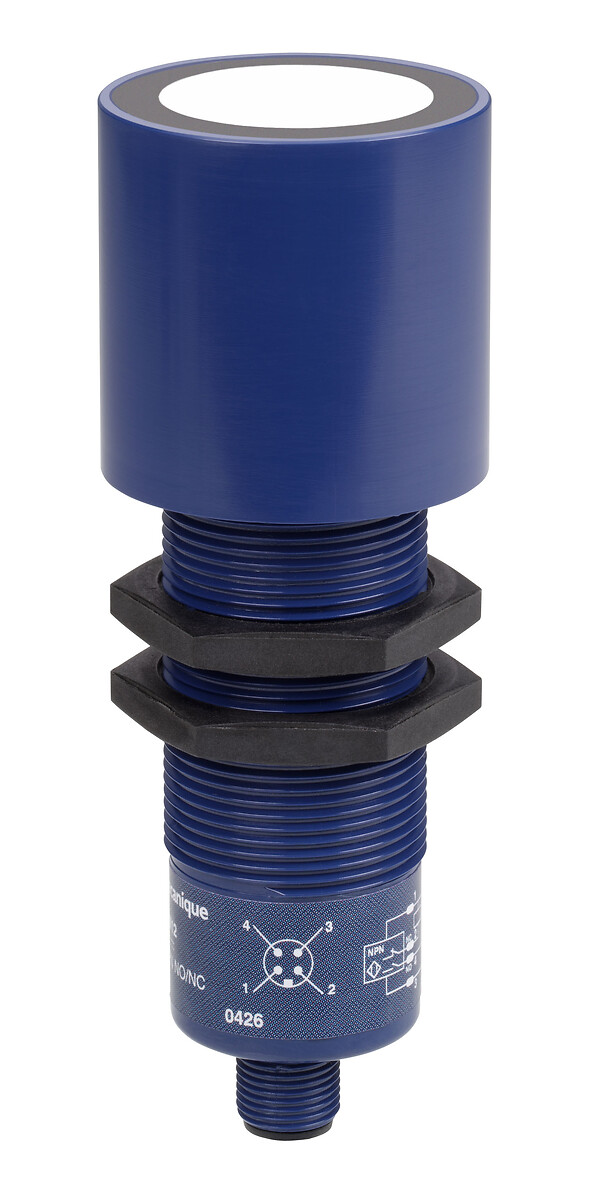

Hyde Park, Ultrasonic sensor, analog, current (mA), 30 mm barrel, 15 24 V DC
End of commercialisation End of commercialization date : End of service date :
SM956A432000 is replaced by the following product:
XXS30P2AM12
Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, straight, 2 m, 4...20 mA
Quantity : 1
Expand all
Datasheet
Range of product
Hyde Park
Sensor type
Ultrasonic sensor
Series name
Superprox 900
Product specific application
Analog output
Enclosure material
ULTEM
Sensor design
Cylindrical M30
Material
Plastic
Wiring technique
4-wire
ISO thread
M30 x 1.5
Current consumption
80 mA
[Us] rated supply voltage
15...24 V DC with overload and short-circuit protection
Type of output signal
Analog
Front material
Silicone rubber
Electrical connection
Male connector M12 4 pins
Type of sensing window
Adjustable
IP degree of protection
IP67
Product certifications
UL
Marking
CE
Minimum size of detected object
Cylinder diameter 1.6 mm - up to 305 mm sensing distance
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
NEMA degree of protection
NEMA 4X (indoor use only)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.572 CENTIMETER
Package 1 width
9.906 CENTIMETER
Package 1 length
13.462 CENTIMETER
Package 1 weight
117.934 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
