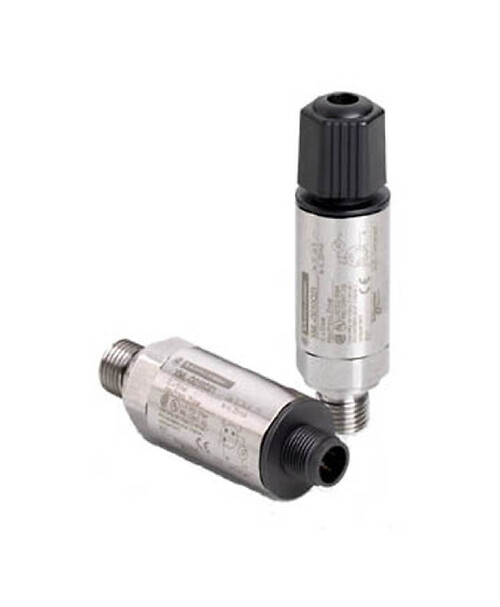

XMLG010Q41TQ
Pressure sensor XMLG 0.8..10 bar - G1/4A (male) - 24 V - NC - set of 25
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Electronic pressure sensor
Pressure sensor name
XMLG
Fluid connection type
G 1/4A (male) conforming to DIN 3852-E
Electrical circuit type
Control circuit
Discrete output type
Solid state PNP, 1 NC
Electrical connection
Quickon type quick coupling
Type of output signal
Discrete
[Us] rated supply voltage
12 V DC (voltage limits: 8-33 V), 24 V DC (voltage limits: 8-33 V)
Quantity per set
Set of 25
Type of packing
Group
Materials in contact with fluid
Ceramic
FPM (Viton)
stainless steel type AISI 303
FPM (Viton)
stainless steel type AISI 303
Scale type
Fixed differential
Controlled fluid
Air (-15-125 °C), corrosive fluid (-15-125 °C), hydraulic oil (-15-125 °C), fresh water (0-125 °C)
Local display
Without
Current consumption
< 4 mA
Protection type
Load short-circuit
reverse polarity
reverse polarity
Drift of the sensitivity
+/- 0.015 % of measuring range/°C
Drift of the zero point
+/- 0.015 % of measuring range/°C
Setting
Factory setting
Response time on output
< 2 ms
Repeat accuracy
+/- 0.1 % of the measuring range
Measurement accuracy
+/- 1 % de la plage de mesure
Operating position
Any position
Standards
CE
IEC 61326-2-3
IEC 61326-2-3
Product certifications
CSA C22-2 No 14
UL 508
UL 508
Protective treatment
TC
Shock resistance
25 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
20 gn (f= 9-2000 Hz) conforming to IEC 60028-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
NEMA degree of protection
NEMA 4
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

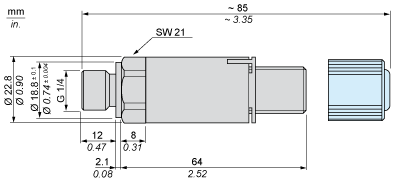

Dimensions
Wiring Diagram
3-Wire Technique (PNP)
- (a) Output
Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
