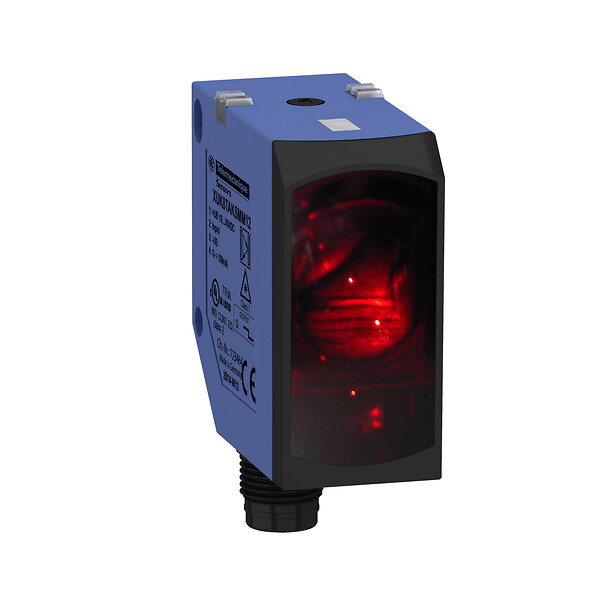

XUK8TAKSMM12

展开全部

参数资料

Range of product

Telemecanique Photoelectric sensors XU

Series name

Application assembly
Application material handling

Electronic sensor type

Photo-electric sensor

Sensor name

XUK

Sensor design

Compact 50 x 50

Detection system

Diffuse with background suppression

Material

Plastic

Type of output signal

Discrete

Wiring technique

4-wire

Discrete output type

IOLINK
PNP or NPN

Discrete output function

1 NO or 1 NC programmable

Electrical connection

1 male connector M12, 4 pins

Product specific application

Distance measurement on object

Emission

Red laser diffuse with background suppression class 1 conforming to IEC 60825-1

Enclosure material

ABS/PC

Lens material

PMMA

Output type

Solid state

Status LED

1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state

[Us] rated supply voltage

24 V DC with reverse polarity protection

Maximum voltage drop

<1.5 V (closed state)

Switching capacity in mA

<= 100 mA (overload and short-circuit protection)

Current consumption

<= 60 mA no-load

Delay first up

300 MILLISECOND

Delay response

2 MILLISECOND

Setting-up

Using teach button or remote teaching

Delay recovery

2 MILLISECOND

Vibration resistance

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60068-2-27

IP degree of protection

IP67 conforming to IEC 60529, IP69K conforming to IEC 60529, IP69K conforming to DIN 40050

Unit type of package 1

PCE

Number of units in package 1

1

Unit type of package 2

S01

Number of units in package 2

28

Package 2 height

15 CENTIMETER

Package 2 width

15 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

1.868 KILOGRAM

Indivisible sale quantity

1

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
