XCLJ761H29

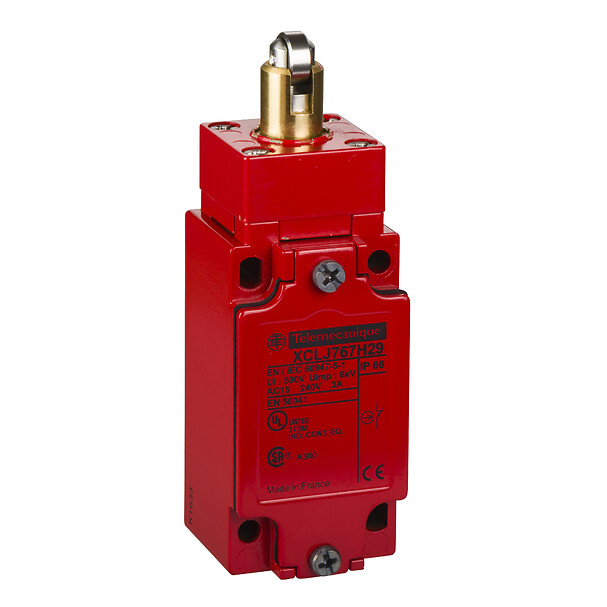

Limit switch, XC Standard, 1 NC + 1 NO slow break entry M20
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Device short name
XCKJ
Product or component type
Limit switch
Series name
Standard format
Material
Metal
Fixing mode
By the body
Contacts type and composition
1 NC + 1 NO
Body type
Fixed
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Sensor design
Form B conforming to CENELEC EN 50041
Head type
Plunger head
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Type of operator
Spring return plunger metal
Contact operation
Slow-break, break before make
Movement of operating head
Linear
Body material
Zamak
Head material
Zamak
Switch actuation
On end
Positive opening
With
Type of approach
Vertical approach, 1 direction
IP degree of protection
IP66 conforming to IEC 60529
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Compatibility code
XCKJ
Protective treatment
TH
IK degree of protection
IK07 conforming to IEC 62262
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.3 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
12.8 CENTIMETER
Package 1 weight
430 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
