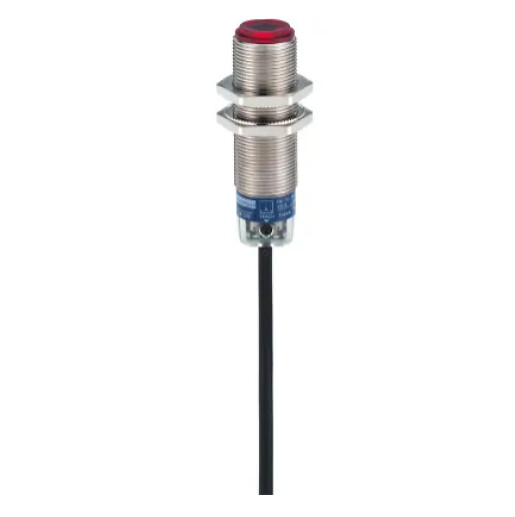

XUFN12301L10
Photoelectric sensors XU, plastic fibre optic for sensor, thru beam, general use, std., 10 m, Sn200mm
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUF
End fitting type
M2.6 x 0.45, standard thread end fitting
Sensor design
Fiber design
Product destination
XUDA
Electronic sensor type
Photo-electric sensor
Optic fiber material
PMMA
Sheath material
PE
Detection system
Thru beam
Optic fiber use
General use
Optic fiber core
1 x Ø 1 mm
Vibration resistance
+/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP64 conforming to IEC 60529, IP641 conforming to NF C 20-010
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.875 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36119819
Document name
Date
Size
11/30/2007
10828
11/30/2007
20749
11/30/2007
2478
11/30/2007
39564
