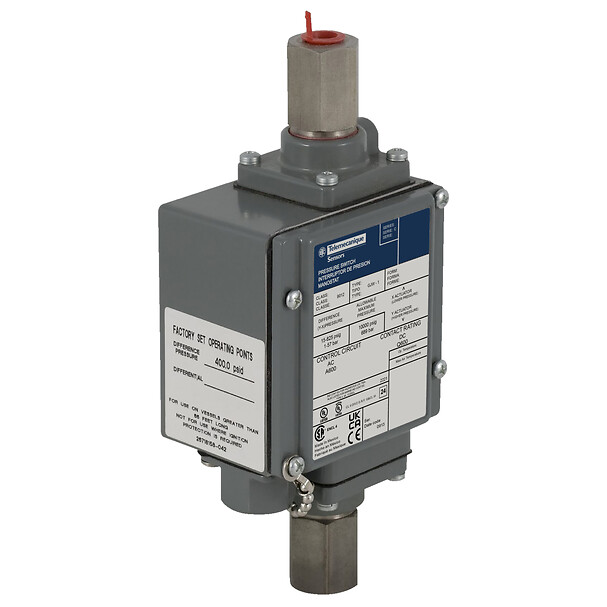

9012GJW21
Pressure switch 9012G, adjustable scale, 2 thresholds, 0 to 5000 PSIG
Commercialised
Expand all
Datasheet
Range of product
9012G
Pressure sensor type
Electromechanical pressure switch
Pressure sensor name
9012G
Maximum pressure
7500 psi
Contacts type and composition
2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts
Controlled fluid
Hydraulic oil (-15-250 °F), selected corrosive gases, air, non-corrosive gas
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
Pressure switch type of operation
Monitors the difference between 2 thresholds
Scale type
Adjustable differential
Local display
Without
Cable entry
0.5 inch NPT conduit entrance
Terminal block type
8 screw terminals
Electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Electrical circuit type
Control circuit
Local signalling
Without:
Setting
Internal
Enclosure material
Die cast aluminium alloy 380
Pressure actuator
Piston
Operating position
Any position
Materials in contact with fluid
Stainless steel 316
440 stainless steel
440 stainless steel
Operating rate
120 cyc/mn
Vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
Shock resistance
50 gn conforming to IEC 58-2-27
Standards
CE
CSA C22.2 No 14
UL 508
CSA C22.2 No 14
UL 508
Product certifications
CE
CSA LR25490 class 3211 03
UL listed file E12158 CCN NKPZ and CCN NTHT
CSA LR25490 class 3211 03
UL listed file E12158 CCN NKPZ and CCN NTHT
NEMA degree of protection
NEMA 4/4X/13 conforming to UL 50
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
61.29 CENTIMETER
Package 1 width
24.13 CENTIMETER
Package 1 length
155.677 CENTIMETER
Package 1 weight
1.134 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
