XCMW146

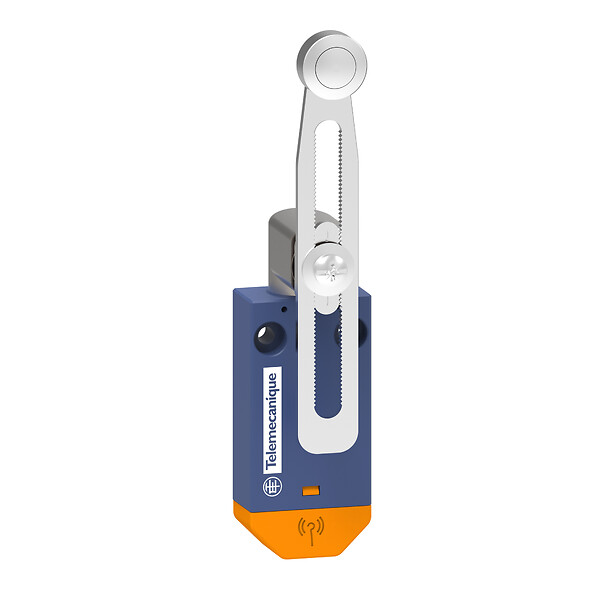

Wireless limit switch XCMW - steel roller lever
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Miniature format
Product or component type
Wireless limit switch
Device short name
XCMW
Body type
Fixed
Head type
Rotary head
Body material
Plastic
Head material
Metal
Lever material
Metal
Fixing mode
By 2 screws
Type of operator
Spring return roller lever
Switch actuation
By 30° cam
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Type of approach
Lateral approach, 2 directions
Electrical composition code
PW1
Response time
<= 2 ms
Contact operation
Snap action
Operating rate
60 CYCLE_PER_MINUTE
Switching operation per year
3600
Electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Directives
1999/5/EC - R&TTE directive
2004/108/EC - electromagnetic compatibility
2004/108/EC - electromagnetic compatibility
Standards
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-1
Radio agreement
IC conforming to RSS, FCC conforming to RCM
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
3.2 CENTIMETER
Package 2 width
4.7 CENTIMETER
Package 2 length
12.7 CENTIMETER
Package 2 weight
120 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Screw Mounting
Unobstructed Mounting
Mounting in a Metal Cabinet
Signal Attenuation According to the Material
Mounting Tips for Antenna
Optimized Installation
Mounting Tips for Antenna
The Relay Antenna is used to Bypass an Obstacle and/or Increase the Range
Mounting with Adjustable Roller Lever
Recommended Mounting
Mounting with Adjustable Roller Lever
Mounting to be Avoided
Characteristics of Actuation
Technical Description
Functional Diagram, Travel Distance
