XS7C40KPM40
Inductive sensor XS7 40x40x117 - plastic - Sn15mm - 12..24VDC - terminals
End of commercialisation End of commercialization date : End of service date :
XS7C40KPM40 is replaced by the following product:

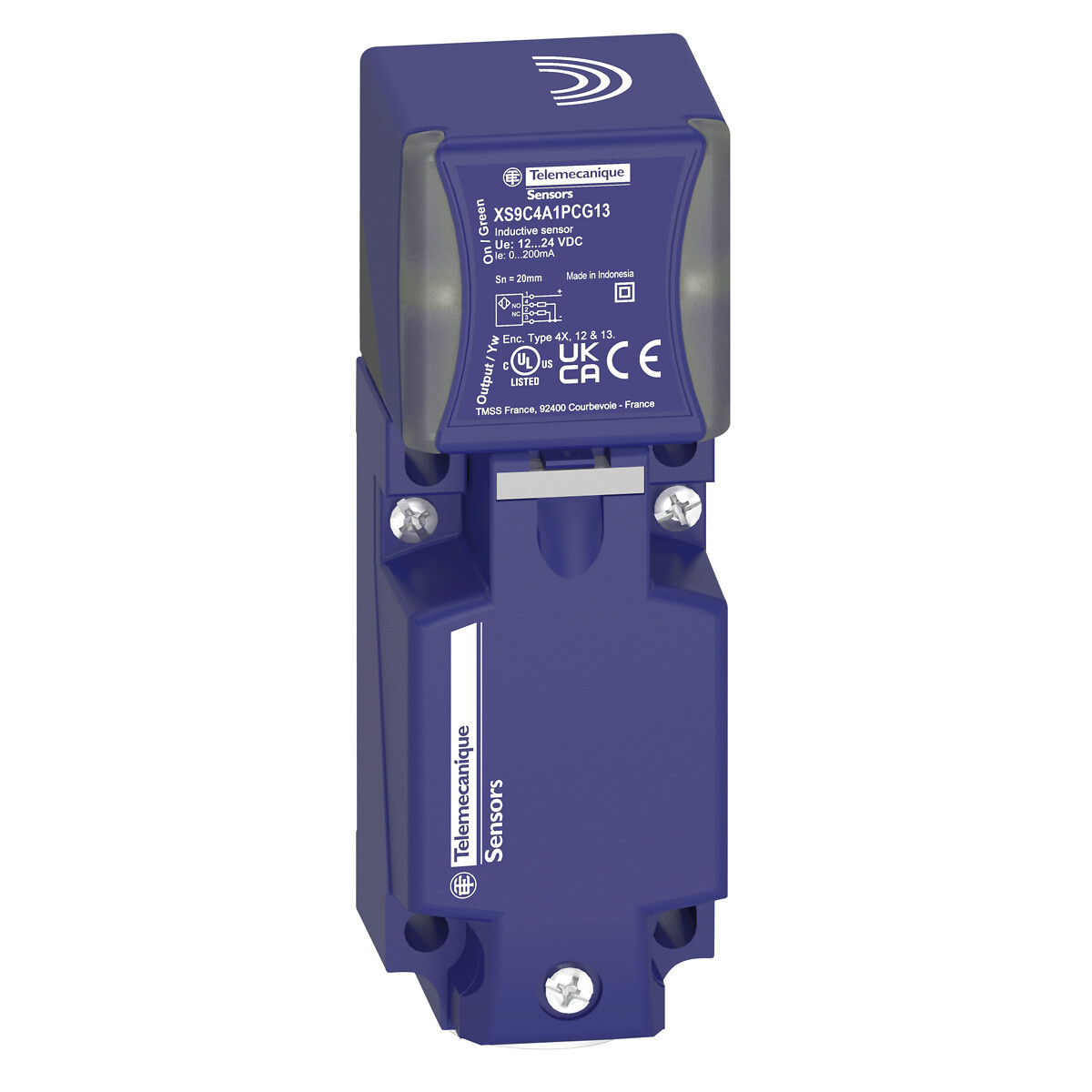

XS9C4A1PCG13
Inductive proximity sensors XS, inductive sensor XS9 40x40x117, PBT, Sn20 mm, 12...24 VDC, terminals
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
Factor 1 (Fe/Nfe)
Sensor name
XS7
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Type of output signal
Discrete
Wiring technique
4-wire
Output circuit type
DC
Discrete output function
1 NO or 1 NC programmable
Discrete output type
PNP and NPN
Electrical connection
Screw-clamp terminals, 4 x 0.34 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Plastic
Detection face
5 positions turret head
Front material
Plastic
Sensing range
8...15 mm
Differential travel
3...20% of Sr
Repeat accuracy
<= 3% of Sr
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Voltage drop
<2.6 V (closed)
Current consumption
0...15 mA no-load
Delay first up
5 MILLISECOND
Delay response
0.3 MILLISECOND
Delay recovery
0.7 MILLISECOND
Marking
CE
Product certifications
CSA
C-Tick
UL
C-Tick
UL
Unit type of package 1
PCE
Number of units in package 1
1
