XU8M18MB230WK

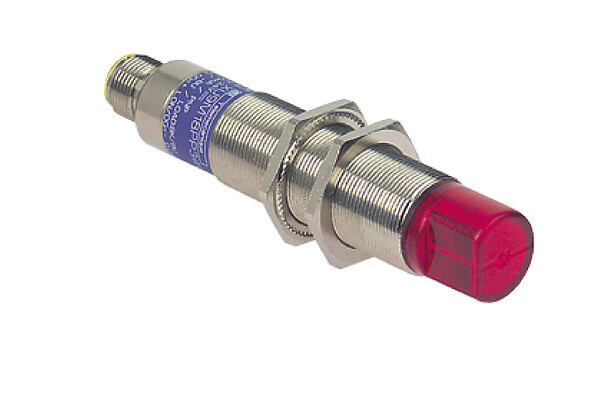

Photoelectric sensors XU, XU8, BGS, 90°, Sn 0.12 m, 24...240VAC/DC, 1/2"
End of commercialisation End of commercialization date : End of service date :
XU8M18MB230WK is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XU8
Sensor design
Cylindrical M18
Detection system
Diffuse with background suppression
Material
Metal
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
2-wire
[Sn] nominal sensing distance
0.12-0.12 m diffuse with background suppression
Discrete output function
1 NC
Electrical connection
1 male connector 1/2"20 UNF, 3 pins
Product specific application
Not applicable
Emission
Infrared diffuse with background suppression
Enclosure material
Nickel plated brass
Lens material
PMMA
Output type
Solid state
Add on output
Without
Status LED
1 LED (yellow) for output state
[Us] rated supply voltage
24...240 V AC/DC
Residual current
-
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Maximum voltage drop
<6 V (closed state)
Delay first up
300 MILLISECOND
Delay response
20 MILLISECOND
Delay recovery
20 MILLISECOND
Setting-up
Sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Schemes
Connector
- 1 : Grounding
- 2 : AC/DC
- 3 : AC/DC
Wiring Schemes
2-wire AC or DC
- 1 : Grounding
- 2 : AC/DC
- 3 : AC/DC
Detection Curves
Diffuse System with Adjustable Background Suppression
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
