XUFS2520

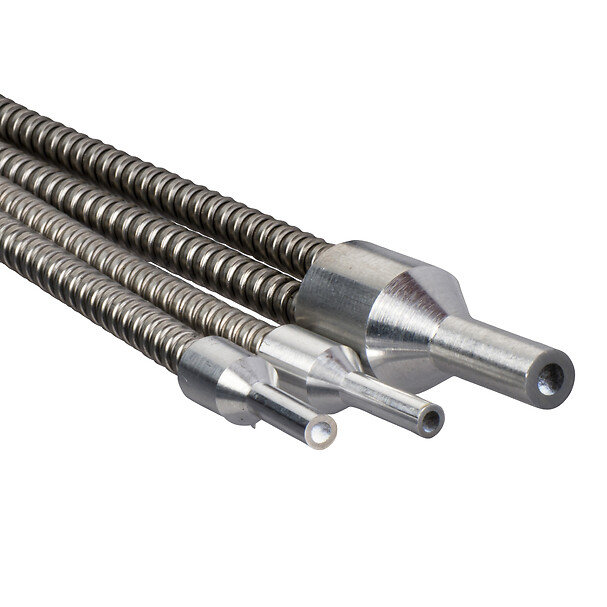

Fiber optic light guide for amplifier - glass - 0.97 m - sensing range 20 mm
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUF
Sensor design
Fiber design
Product destination
XUDA
Electronic sensor type
Photo-electric sensor
Sheath material
PE
Vibration resistance
+/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP64 conforming to IEC 60529, IP641 conforming to NF C 20-010
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
