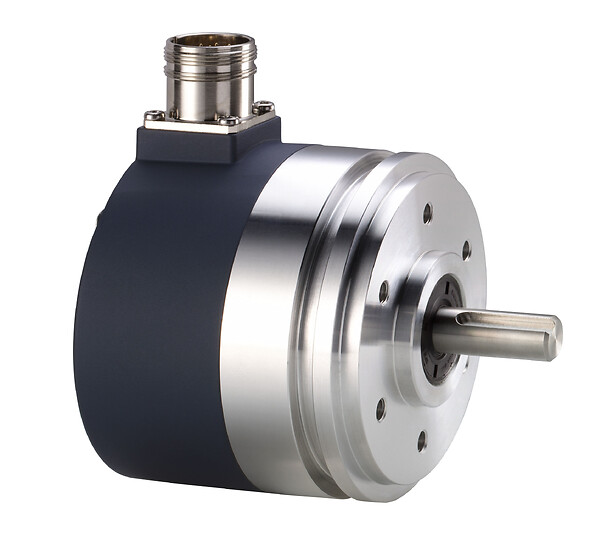

XCC1912PS01KN
Incremental encoder Ø 90 - solid shaft 12 mm - 100 points - push-pull
End of commercialisation Τέλος εμπορευσιμότητας : Τέλος τεχνικής υποστήριξης :
Πλήρη ανάπτυξη
Τεχνικά χαρακτηριστικά
Range of product
OsiSense XCC
Encoder type
Incremental encoder
Product specific application
Not applicable
Encoder name
XCC
Enclosure material
Zamak
[Us] rated supply voltage
11...30 V DC
Shaft type
Solid shaft
Resolution
100 points
Output stage
Type K
Type of output stage
Driver push-pull
Electrical connection
1 male connector M23 radial 12 pins
IP degree of protection
IP66 conforming to IEC 60529
Current consumption
0...75 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
G6
Residual ripple
500 mV
Vibration resistance
10 gn (f= 10-1000 Hz) conforming to IEC 60068-2-6
Maximum load
10 daN axial, 20 daN radial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 1.5 V maximum 20 mA, high level: V supply - 3 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6001ZZ
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Πλήρη ανάπτυξη
Τεχνικά σχέδια

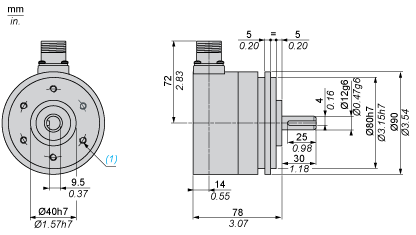

Dimensions
- (1) 6 holes M6 x 1 at 120° on 60 PCD, maximum depth: 12 mm
Wiring Diagram
Type K Output Stage
- (1) Encoder
- (2) Processing
- (3) Supply 11 V/30 V
Wiring Diagram
M23, 12-pin Connector Connections
