7XJ7N

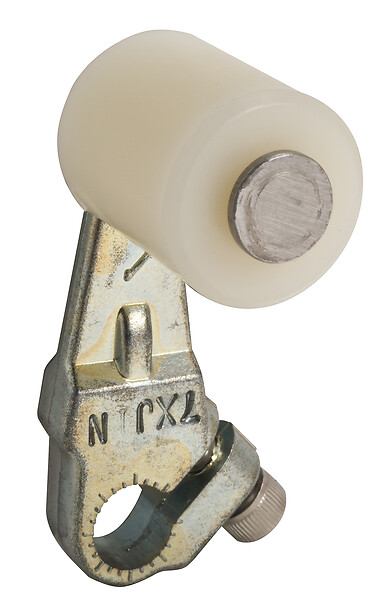

9007MS/ML limit switch lever - zinc - fixed length - inside nylon roller
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
9007
Series name
Miniature potted
Product or component type
Limit switch lever
Device short name
9007MS/ML
Movement of operating head
Rotary
Type of operator
Cast zinc spring return roller lever length: 1.75-1.75 in -
Type of roller
1 nylon inside roller diameter: 0.75 in - width: 1 in
Type of approach
Lateral approach
Positive opening
Without
Tracks
0.875 in
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
