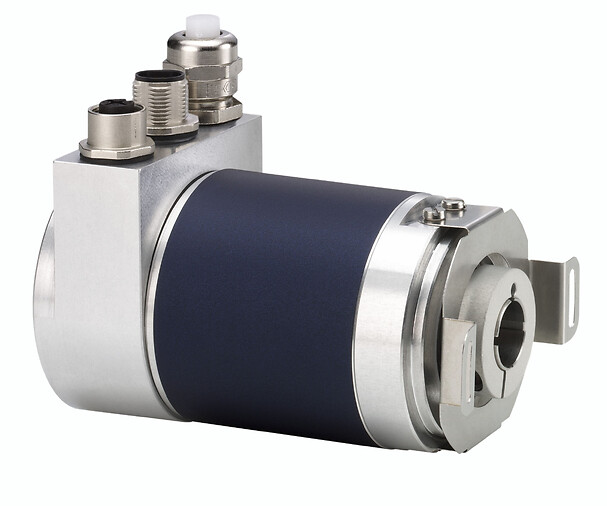

XCC3515CS84CB
Absolute encoder Ø 58 multi turn - hollow shaft 15 mm - 25-bit binary - CANopen
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Multiturn absolute encoder fieldbus
Product specific application
Not applicable
Enclosure material
Aluminium
Bus type
CANopen S10 (Transparent Ready) DS 406 V3.1, class C2 conforming to DR303-1V1.3, DR303-3 V1.2., ISO 11898, DS301 V4.02/CAN2.A
Shaft type
Hollow
Resolution
4096 turns/8192 points
Type of output stage
CANopen 25-bit
Electrical connection
1 male + 1 female connectors + 1 cable gland M12 radial 5 pins Pg 9 radial for network input/ouputs and external supply
IP degree of protection
IP64 conforming to IEC 60529
[Us] rated supply voltage
24 V DC
Transmission rate
1000 kbit/s
10 kbit/s
125 kbit/s
20 kbit/s
250 kbit/s
500 kbit/s
50 kbit/s
800 kbit/s
10 kbit/s
125 kbit/s
20 kbit/s
250 kbit/s
500 kbit/s
50 kbit/s
800 kbit/s
Product certifications
CiA
Schneider Electric interoperability standards
Schneider Electric interoperability standards
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
voltage peaks protection
voltage peaks protection
Status LED
CAN_RUN: 1 LED (green), CAN_ERR: 1 LED (red)
Marking
CE
Shaft tolerance
F7
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
11 daN radial
Shock resistance
100 gn for 6 ms conforming to IEC 60068-2-27
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6803ZZ
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

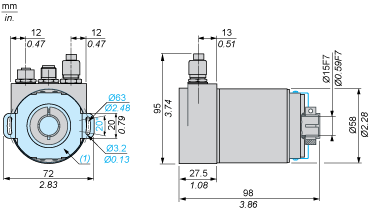

Dimensions
- (1) Flexible mounting kit, 1 x XCCRF5B mounted
Wiring Diagram
CANopen Connections
CANopen Connections
- (1) 1st or last encoder
- (2) Encoder X
CANopen Connections
- (1) 1st or last encoder
- (2) Encoder X
- (1) (1 => 99) (0 => reserve)
CANopen Connections
- (1) 1st or last encoder
- (2) Encoder X
- (1) (1 => 99) (0 => reserve)
- (1) Bus IN M12 male connector
- (2) Bus OUT M12 female connector
