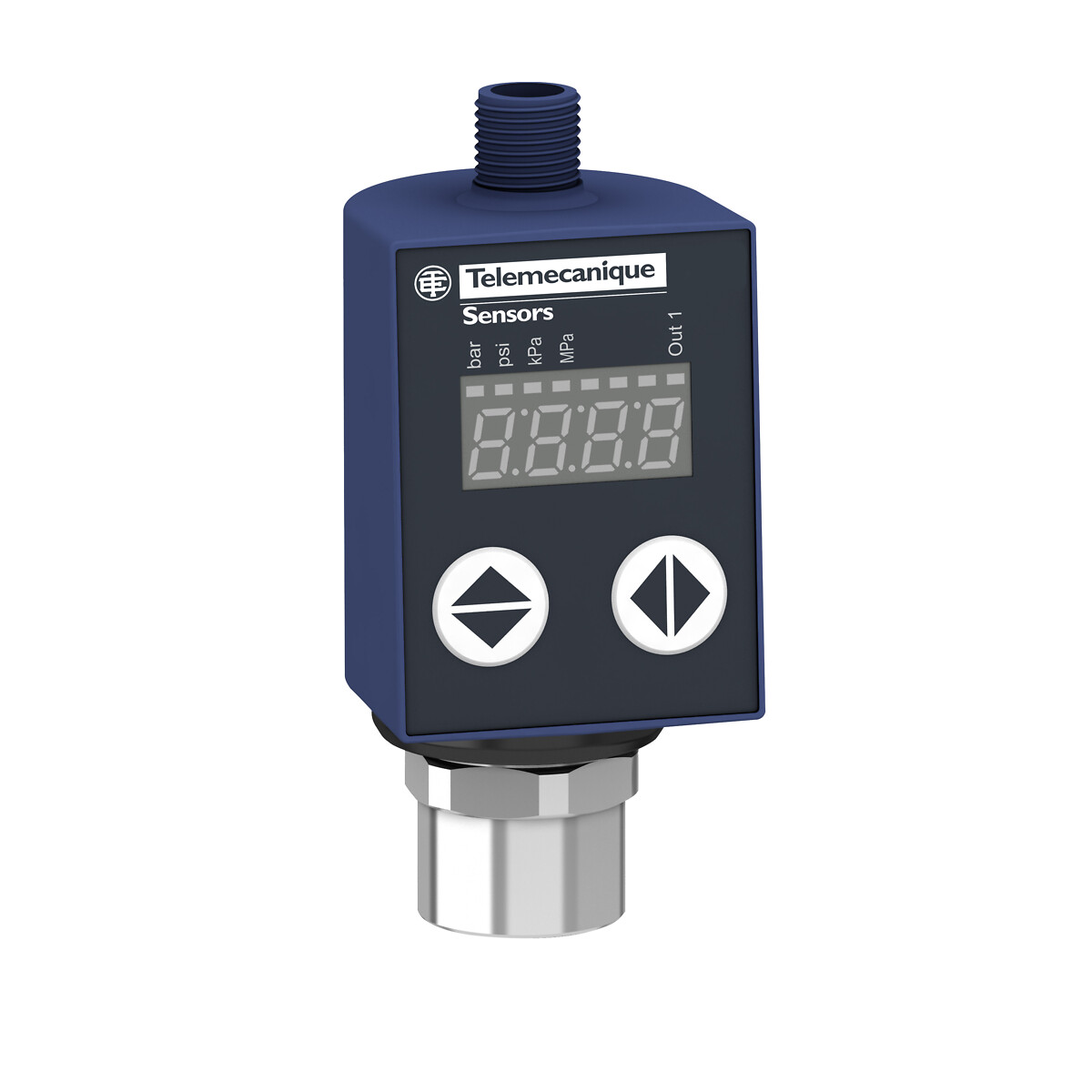

XMLF025D2025

Telemecanique Pressure sensors XM

Electronic pressure sensors

XMLF

4-wire

G 1/4 (female) conforming to ISO 228

4...20 mA

Regulation between 2 thresholds

Solid state PNP or NPN programmable, 1 NO or 1 NC programmable

Male connector M12, 4 pins

Analogue + discrete

Not applicable

24 V DC, voltage limits: 17-33 V

FPM (Viton)
stainless steel type AISI 303

Adjustable differential scale

Air (-15-80 °C), corrosive fluid (-15-80 °C), hydraulic oil (-15-80 °C), fresh water (0-80 °C)

With

Control circuit

80 mA

Connection faults
overload protection
reverse polarity
short-circuit protection

+/- 0,03 % of measuring range/°C

+/- 0,01 % of measuring range/°C

External setting

5...500 ms, in steps of 1 ms

<= 0.6 % of the measuring range

0...50 s in steps of 1 second

Fast
normal
slow

Any position

CE
EN 50081
EN 50082
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 61000-4-11
EN/IEC 61000-4-2
EN/IEC 61000-4-3
EN/IEC 61000-4-4
EN/IEC 61000-4-5
EN/IEC 61000-4-6
EN/IEC 61000-4-8
EN/IEC 61000-6-2

CSA
UL

TC

35 gn (f= 60-2000 Hz) conforming to EN/IEC 60068-2-6, 5 gn (f= 25-200 Hz) conforming to EN/IEC 60068-2-6

IP67 conforming to EN/IEC 60529

50 gn conforming to EN/IEC 60068-2-27

NEMA 12
NEMA 13
NEMA 4
NEMA 6

PCE
